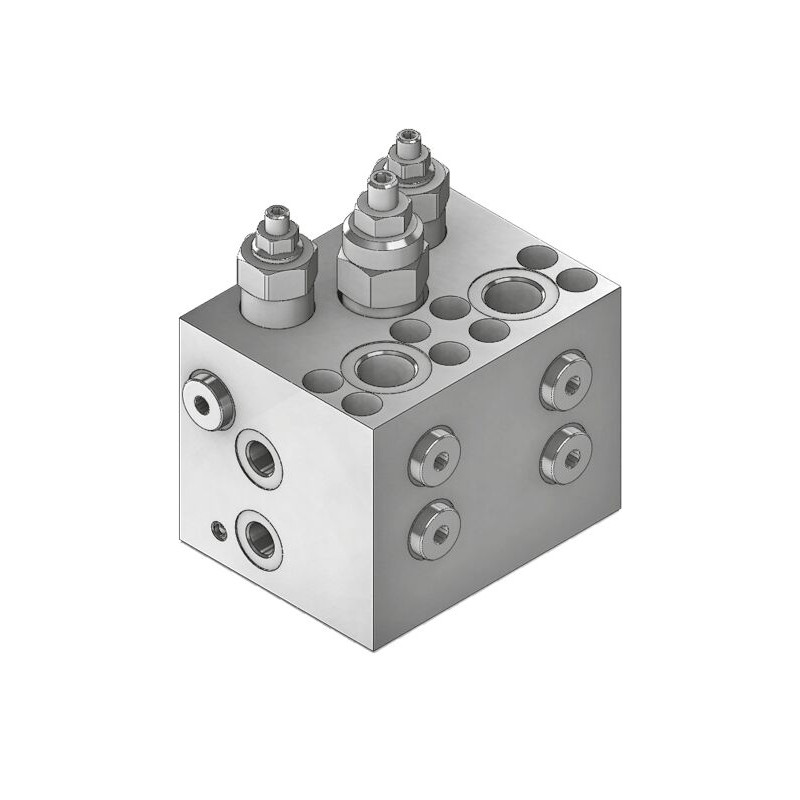

R930002732
06020806100000C-VBSO-DE30-VFA2FE283212-C

R930002732
  • Availability: on request
  • Weight: 3.00 KG
  • Part number: R930002732
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002732
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 60 l/min
Net weight 3 kg
Nominal flow 60 l/min
Operating pressure, max. 210 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 11:1
Ports 1/2” SAE6000
Ports number 8
Product family VBSO-DE-VF-30-FM
Product family Double effect with brake release port
Product family classification Dual counterbalance with pressure reducer for brake release port
Product family type VBSO
Product type VBSO-30
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Flange 1/2” SAE6000
