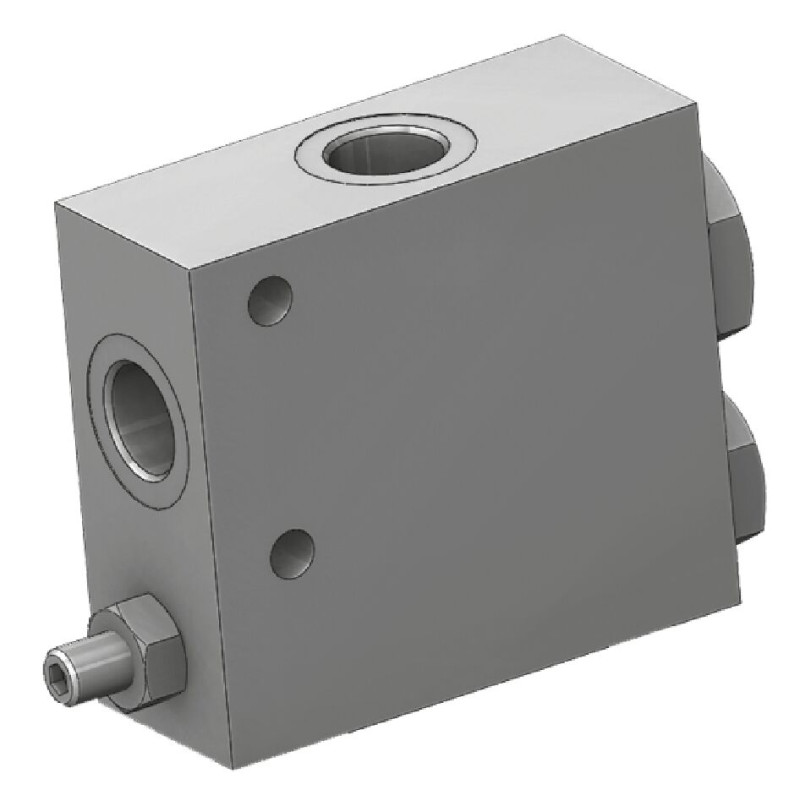

R930059081
05930403042000A BM-N-34-20-A

R930059081
  • Availability: on request
  • Weight: 1.34 KG
  • Part number: R930059081
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059081
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.34 kg
Operating pressure, max. 210 bar
Max. flow 200 l/min
Nominal flow 200 l/min
Adjustable pressure range 50-200
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Pilot operated unloading
Product family type BM-N
Ports number 3
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot External pilot operated
Adjustment options Leakproof hexagon socket screw
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Unloading
Product type BM-N
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 200 l/min (53 gpm)
  • Port: G 3/4
Manual (1)
PDF Pilot operated unloading – BM-N (G 1/2, G 3/4) (EN)
