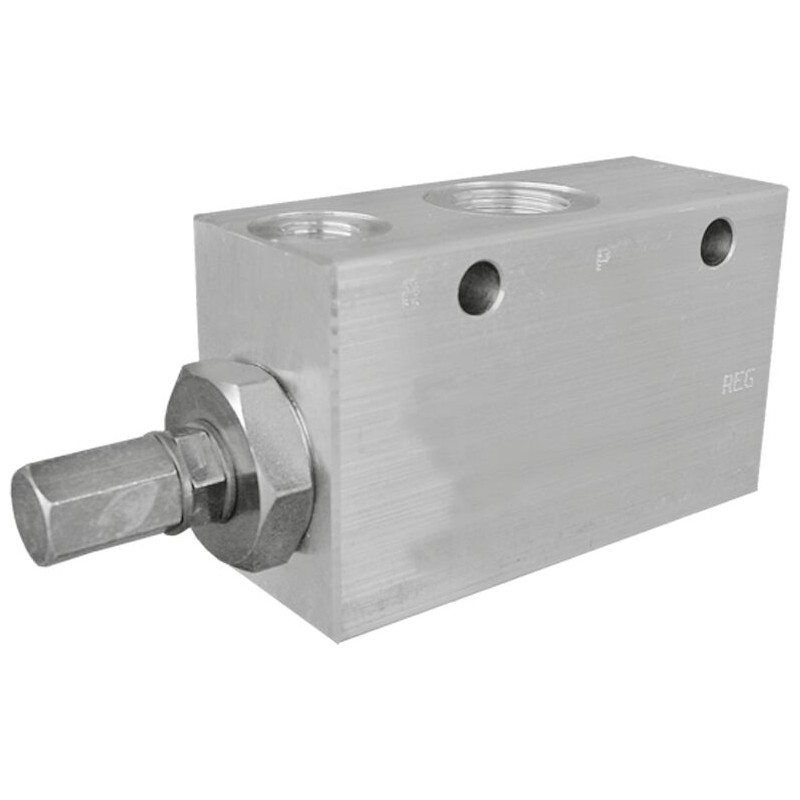

R930002598
05903303032000A VRPC-150-12-20-A

R930002598
  • Availability: on request
  • Weight: 0.75 KG
  • Part number: R930002598
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002598
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 20-210
Max. flow 120 l/min
Net weight 750 g
Nominal flow 120 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 100 bar
Other properties
Adjustment options Leakproof hexagon socket screw
Direct - Pilot Pilot operated
Hydraulic fluid HL,HLP
Normal position Normally open
Ports G 1/2
Ports number 3
Product family VRPC-150
Product family classification Pressure reducing, pilot operated spool type
Product family type VRPC
Sealing material NBR
Spool Poppet Spool type
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 120 l/min (32 gpm)
  • Port: G 1/2
