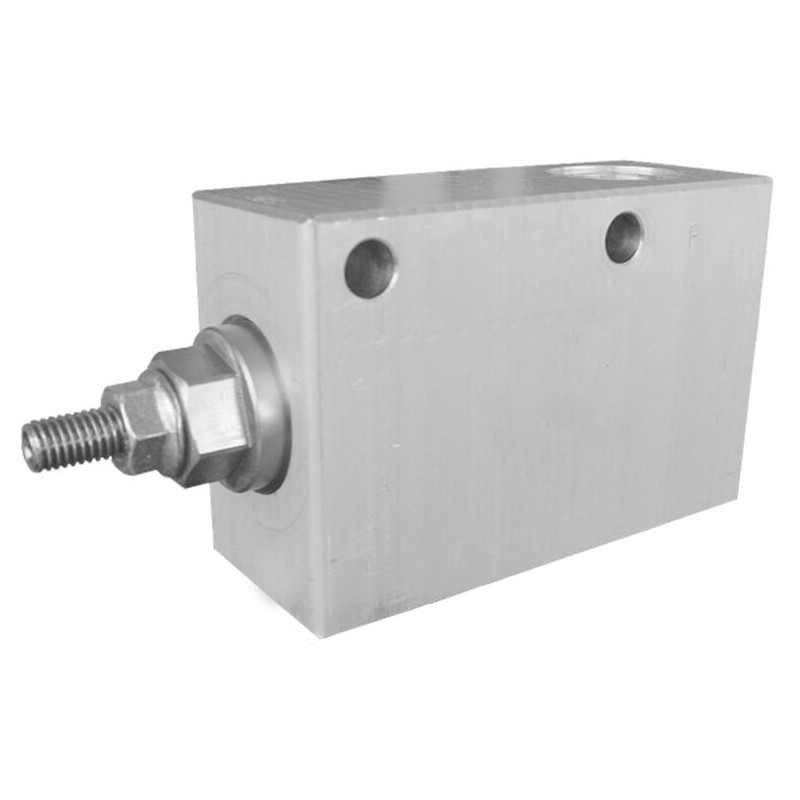

R930002574
05901903020400B VRP-R-VU-38-04-B

R930002574
  • Availability: on request
  • Weight: 0.99 KG
  • Part number: R930002574
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002574
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 990 g
Operating pressure, max. 210 bar
Max. flow 20 l/min
Nominal flow 20 l/min
Adjustable pressure range 3-42
Pressure setting 20 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Pressure reducing and relieving, direct acting spool type, with free flow check valve
Product family type VRP-R
Product family VRP-R-VU
Ports number 3
Normal position Normally open
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Adjustment options Leakproof hexagon socket screw
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 20 l/min (5 gpm)
  • Port: G 3/8
Manual (1)
PDF Pressure reducing and relieving, direct acting spool type, with free flow check valve – VRP-R-VU (G 3/8) (EN)
