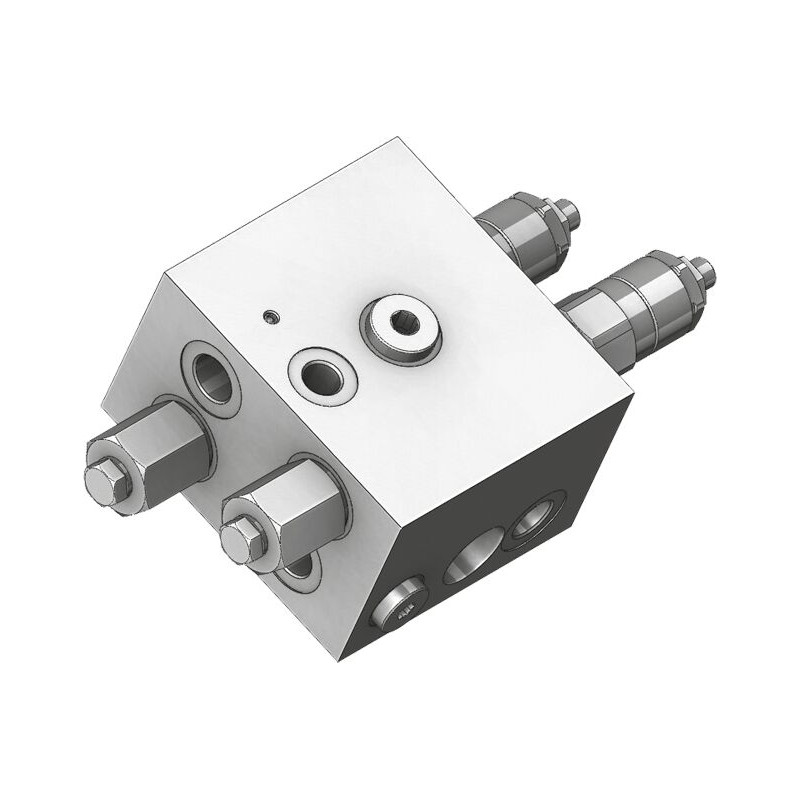

R930006868
05714537022000A VAA-B-SICN5038VFST-20-1&

R930006868
  • Availability: on request
  • Weight: 3.00 KG
  • Part number: R930006868
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930006868
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 60-210
Max. flow 40 l/min
Net weight 3 kg
Nominal flow 40 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 150 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 9.1:1
Ports G 3/8
Ports number 6
Product family VAA-B-SICN-ST-VF-50
Product family Motion control with brake release port
Product family classification Motion control with brake release port
Product family type VAA-B
Product type VAA-B-SICN-VF
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 40 l/min (11 gpm)
  • Port: G 3/8
DataSheet (27)
PDF Dual counterbalance with brake release port – VBSO-DE-VF-30-FM (EN)
PDF Dual counterbalance with pressure reducer for brake release port – VBSO-DE-VF-30-FM (EN)
PDF Single counterbalance with brake release port for winches, flangeable to motor – VBSO-SE-FA-RD-30 (EN)
PDF Dual counterbalance with brake release port – VBSO-DE-VF-30-FM (EN)
PDF Dual counterbalance, with brake release port – A-VBSO-DE-VF-30 (G 1/2, G 3/4) (EN)
PDF Single counterbalance with brake release port for winches, flangeable to motor – VBSO-SE-FA-33 (EN)
PDF Dual cross over relief, direct acting, flangeable to motor – VSDI-30 (EN)
PDF Dual cross over relief, pilot operated, with anti-cavitation check valves, flangeable to motor – A-VAA-CC-42-FM (EN)
PDF Dual cross over relief, pilot operated, with anti-cavitation check valves – A-VAA-CC-150 (EN)
PDF Dual counterbalance and cross over relief with brake release port – VBSO-DE-VF-30-VSDI-FM (EN)
PDF Dual cross over relief, direct acting – VSDI-30 (EN)
PDF Single counterbalance – A-VBSO-SE-90-PL (G 1/2) (EN)
PDF Motion control dual setting – VAA-B-SICN-PDRM-50 (G 3/8) (EN)
PDF Single counterbalance with brake release port for winches, flangeable to motor – VBSO-SE-FA-RD-90 (EN)
PDF Motion control, VAA-B-SIC50-38 (EN)
PDF Single counterbalance with brake release port for winches – A-VBSO-SE-LA-33 (G 1/2, G 3/4) (EN)
PDF Control Plus check and metering valve flangeable, A-VBC14-FC2 (EN)
PDF Dual cross over relief, direct acting, with anti-cavitation check valves, flangeable to motor – VSDI-VA-80-FM (EN)
PDF Dual cross over relief, with anti-cavitation check valves, flangeable to motor – VSDI-VA-30-FM (EN)
PDF Dual counterbalance – A-VBSO-DE-90-FC2 (EN)
PDF Motion control, dual setting, with brake release port – VAA-B-SICN-PDRM-VF-150 (G 3/4) (EN)
PDF Dual cross over relief, direct acting, with anti-cavitation check valves – VSDI-VA-80 (G 1/2, G 3/4) (EN)
PDF Motion control – VAA-B-SICN-ST-150 (G 3/4) (EN)
PDF Dual counterbalance with brake release port – VBSO-DE-VF-30-VSDI-FM (EN)
PDF Motion control dual setting – VAA-B-SICN-PDRM-250 (G 1) (EN)
PDF Single counterbalance, vented – A-VBSO-SE-CCAP-78 (G 1/4) (EN)
PDF Motion control – VAA-B-SICN-ST-50 (G 3/8) (EN)
