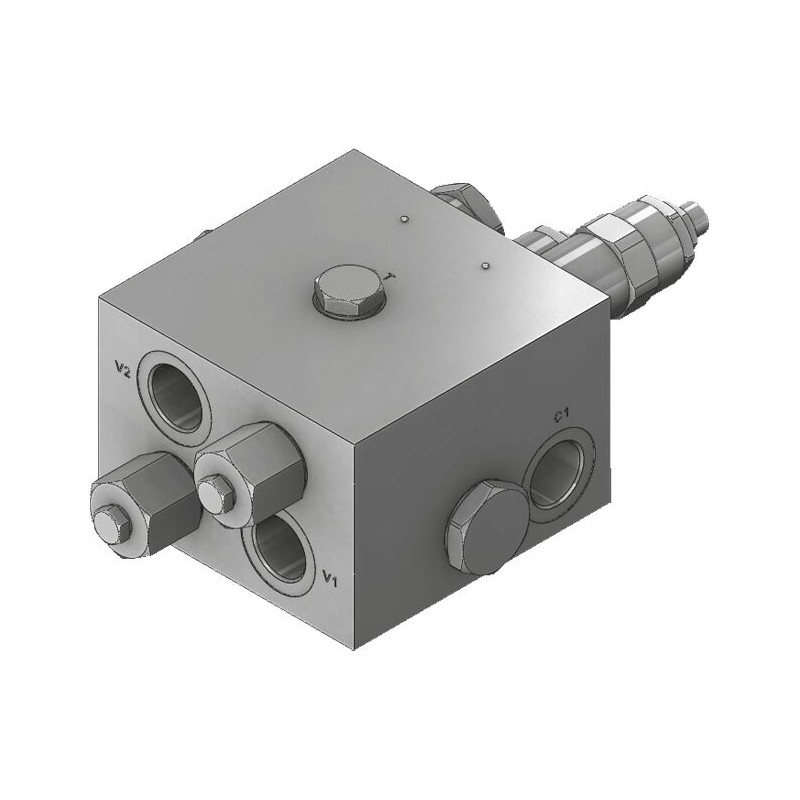

R930006908
05714403053500B VAA-B-SICN250-ST-100-35&

R930006908
  • Availability: on request
  • Weight: 10.86 KG
  • Part number: R930006908
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 3.

R930006908
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 10.855 kg
Operating pressure, max. 210 bar
Max. flow 200 l/min
Nominal flow 200 l/min
Adjustable pressure range 100-350
Pressure setting 150 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Motion control
Product family type VAA-B
Product family VAA-B-SICN-ST-250
Ports number 5
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 8:1
Ports G 1
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Motion control
Product type VAA-B-SICN
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 200 l/min (53 gpm)
  • Port: G 1
Manual (1)
PDF Motion control – VAA-B-SICN-ST-250 (G 1) (EN)
