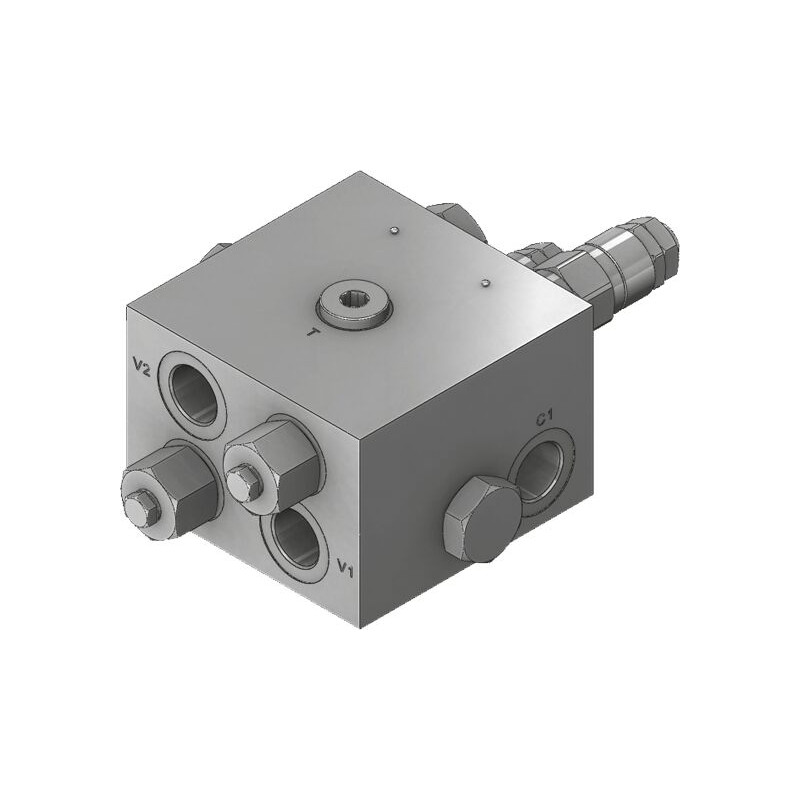

R930006932
05714403043500B VAA-B-SICN150-ST-34-35-B

R930006932
  • Availability: on request
  • Weight: 5.58 KG
  • Part number: R930006932
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930006932
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 5.58 kg
Operating pressure, max. 210 bar
Max. flow 120 l/min
Nominal flow 120 l/min
Adjustable pressure range 100-350
Pressure setting 150 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Motion control
Product family type VAA-B
Product family VAA-B-SICN-ST-150
Ports number 6
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 7.6:1
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Motion control
Product type VAA-B-SICN
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 120 l/min (32 gpm)
  • Port: G 3/4
Manual (1)
PDF Motion control – VAA-B-SICN-ST-150 (G 3/4) (EN)
