R930002457

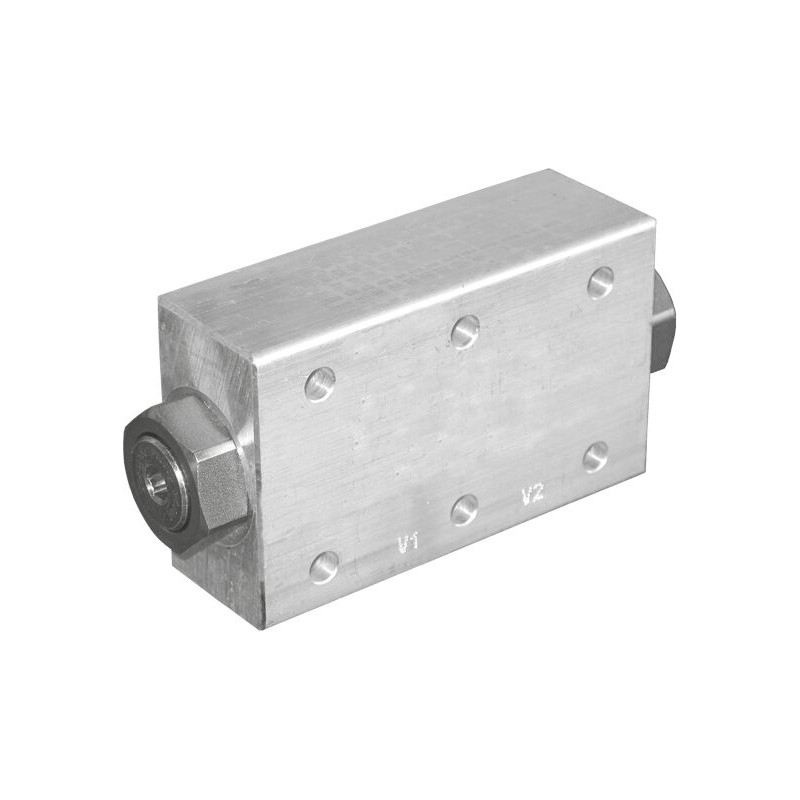

055344000200000 VSO-DE-N-38-FCB-38

R930002457
  • Availability: on request
  • Weight: 0.68 KG
  • Part number: R930002457
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002457
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 30 l/min
Net weight 680 g
Nominal flow 30 l/min
Operating pressure, max. 210 bar
Pressure pre-setting Without pressure pre-setting
Pressure setting 1 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 7:1
Ports Special flange
Ports number 4
Product family VSO-DE-FC2 (G 3/8)
Product family Double effect
Product family classification Pilot operated check, dual
Product family type VSO
Product type VSO
Sealing material NBR
Type of connection Flange connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Flangeable
