R930002438

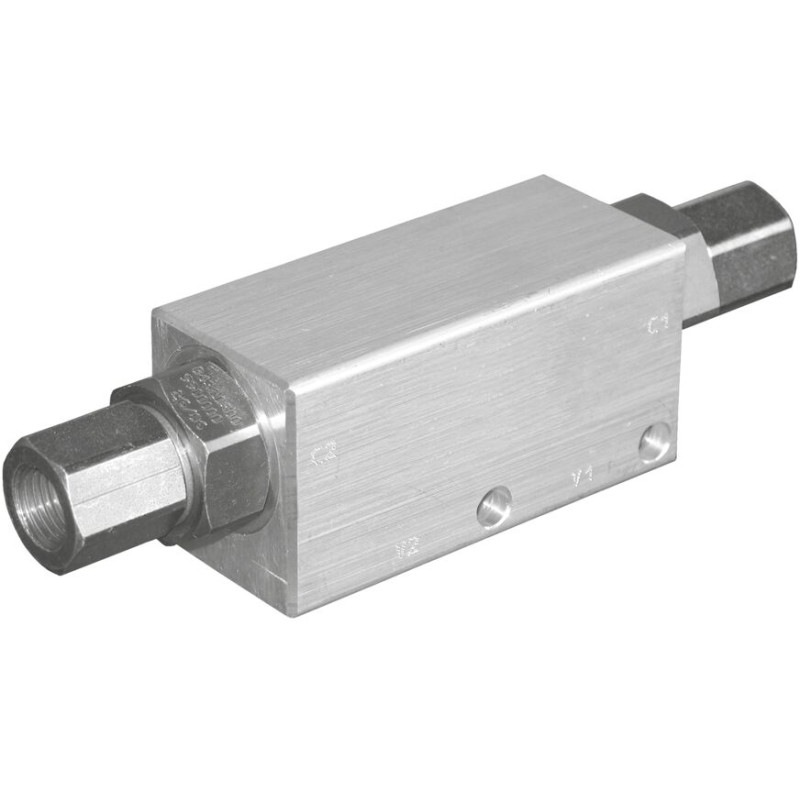

055303370901000 VSO-DE-L-14-MP-1:9

R930002438
  • Availability: on request
  • Weight: 0.52 KG
  • Part number: R930002438
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002438
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 20 l/min
Net weight 520 g
Nominal flow 20 l/min
Operating pressure, max. 350 bar
Pressure pre-setting Without pressure pre-setting
Pressure setting 8 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 9:1
Ports G 1/4
Ports number 4
Product family VSO-DE-L (G 1/4)
Product family Double effect
Product family classification Pilot operated check, dual
Product family type VSO
Product type VSO-L
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 350 bar (5000 psi)
  • Maximum flow 20 l/min (5 gpm)
  • Port: G 1/4
