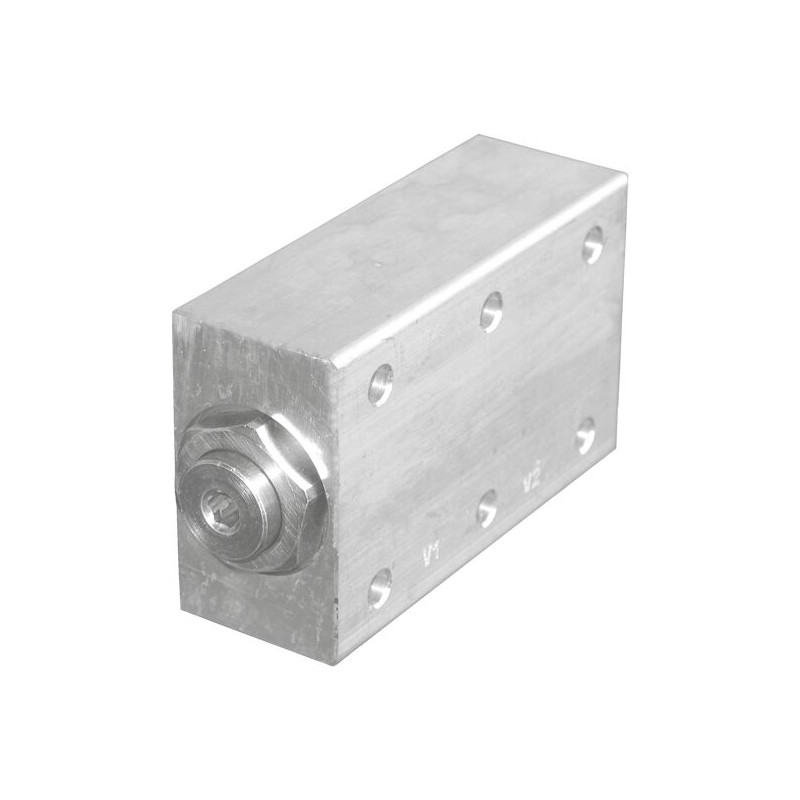

R930002416
055302250301000 VSO-DE-G-FCB-12-MP-1:5.4

R930002416
  • Availability: on request
  • Weight: 0.90 KG
  • Part number: R930002416
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002416
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 900 g
Operating pressure, max. 210 bar
Max. flow 50 l/min
Nominal flow 50 l/min
Pressure setting 8 bar
Pressure pre-setting Without pressure pre-setting
Other properties
Product family classification Pilot operated check, dual
Product family type VSO
Product family VSO-DE-FC2 (G 1/2)
Ports number 4
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 6:1
Ports Special flange
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Double effect
Product type VSO
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Flangeable
Manual (1)
PDF Pilot operated check, dual – VSO-DE-FC2 (EN)
