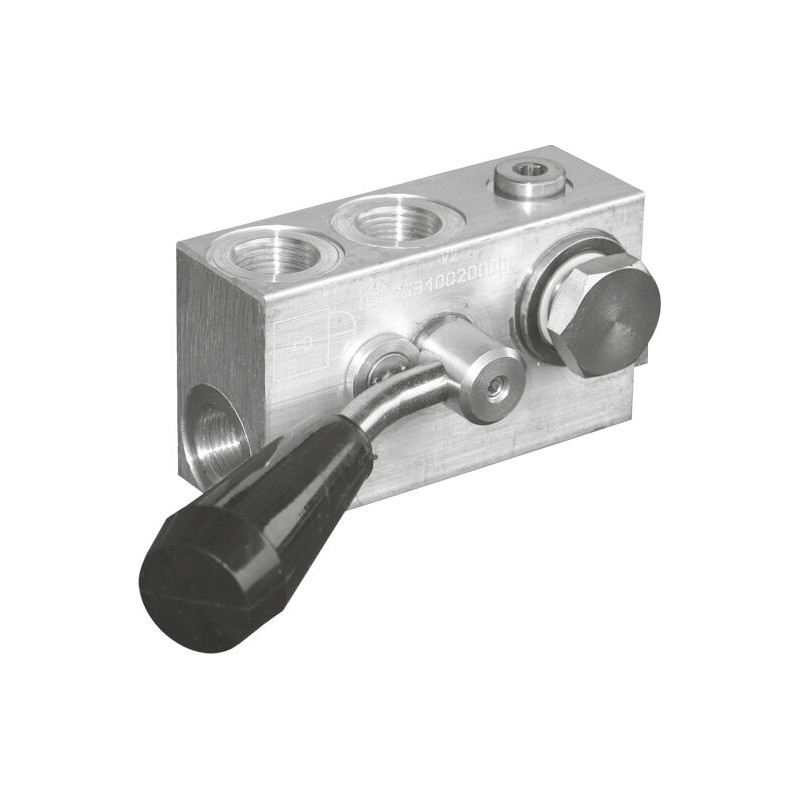

R930002363
055253100200000 VSOSEFCV-DL-AC-R38NA-S

R930002363
  • Availability: on request
  • Weight: 0.56 KG
  • Part number: R930002363
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002363
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 0.556 kg
Operating pressure, max. 210 bar
Max. flow 30 l/min
Nominal flow 30 l/min
Pressure setting 32 bar
Pressure pre-setting Without pressure pre-setting
Other properties
Product family classification Pilot operated check, single
Product family type VSO
Product family VSO-SE-DL-FCV-SX
Ports number 4
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 5.4:1
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect
Product type VSO-DL
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Port: G 3/8
Manual (1)
PDF Pilot operated check, single, manual shut-off – VSO-SE-DL-FCV-SX (EN)
