R930002090
05457003032000A VBSO-SE30-FA-OMP-12-20-A

R930002090
  • Availability: on request
  • Weight: 1.12 KG
  • Part number: R930002090
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930002090
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.124 kg
Operating pressure, max. 210 bar
Max. flow 60 l/min
Nominal flow 60 l/min
Adjustable pressure range 60-210
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties

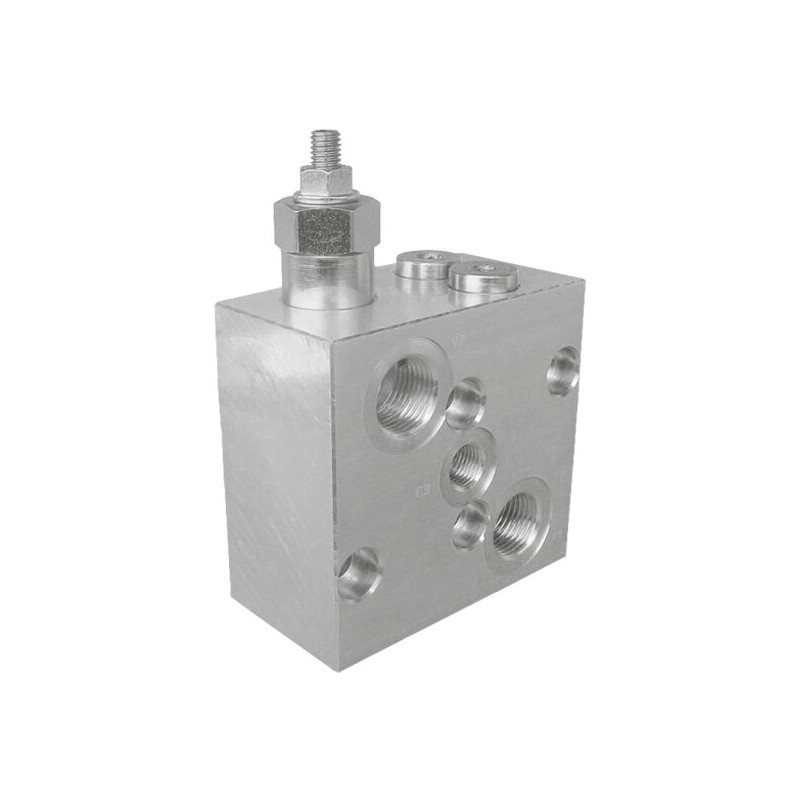

Product family classification Single counterbalance with brake release port for winches flangeable to motor
Product family type VBSO
Product family VBSO-SE-FA-30
Ports number 5
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 4.2:1
Ports Special flange
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Single effect with brake release port
Product type VBSO-30
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 60 l/min (16 gpm)
  • Flangeable
Manual (1)
PDF Single counterbalance with brake release port for winches, flangeable to motor – VBSO-SE-FA-30 (EN)
