R930007287

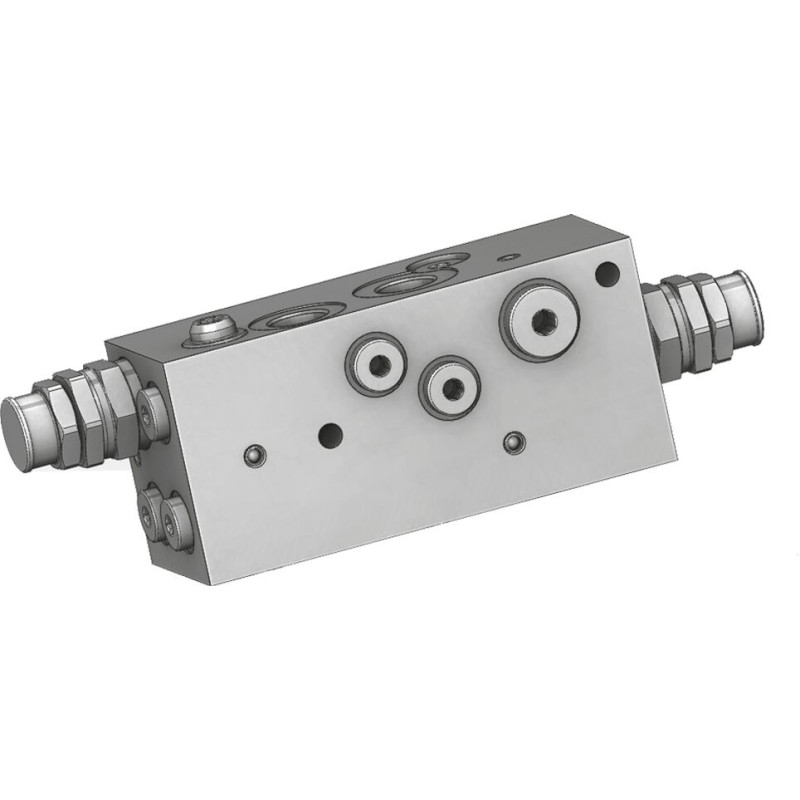

05445803023500A VBSO-DECR78-PRPF-38-35-A

R930007287
  • Availability: on request
  • Weight: 1.33 KG
  • Part number: R930007287
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930007287
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 180-350
Max. flow 40 l/min
Net weight 1.33 kg
Nominal flow 40 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 350 bar
Other properties
Direct - Pilot External pilot operated
Hydraulic fluid HL,HLP
Pilot ratio 4.1:1
Ports G 3/8
Ports number 4
Product family VBSO-DE-CR-78
Product family Double effect with regenerative function
Product family classification Dual counterbalance, with regenerative function
Product family type VBSO
Product type VBSO-78
Sealing material NBR
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 40 l/min (11 gpm)
  • Port: G 3/8
