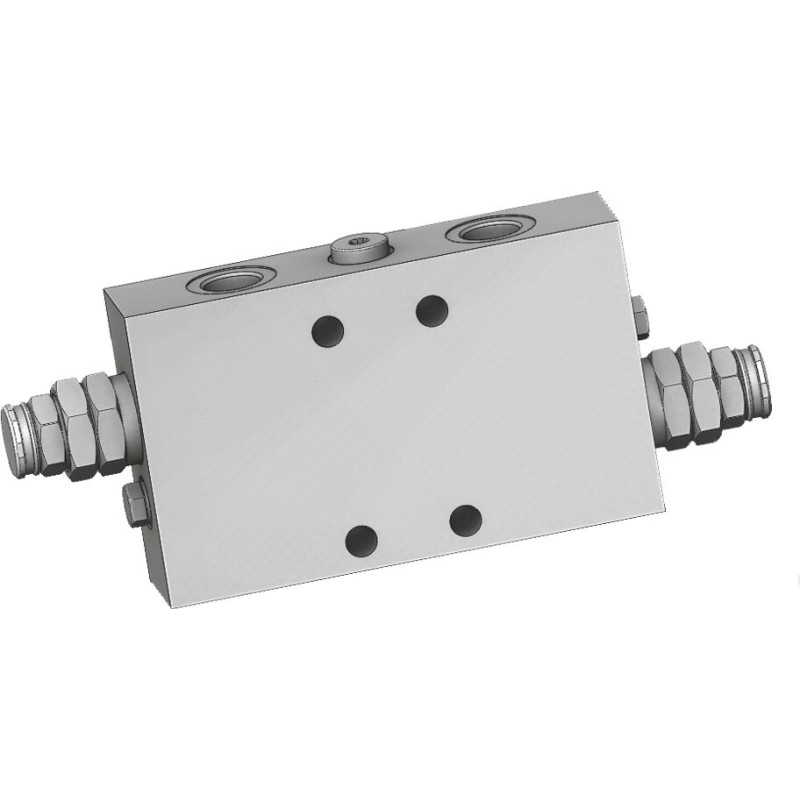

R930058481
05443103043500E VBSO-DE33-CCAP-FC2PL-34&

R930058481
  • Availability: on request
  • Weight: 2.20 KG
  • Part number: R930058481
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930058481
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.2 kg
Operating pressure, max. 210 bar
Max. flow 150 l/min
Nominal flow 150 l/min
Adjustable pressure range 150-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Dual counterbalance, vented
Product family type VBSO
Product family VBSO-DE-CCAP-33-FC2
Ports number 5
Type of connection Flange connection
Direct - Pilot External pilot operated
Pilot ratio 4:1
Ports Special flange
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Double effect vented
Product type VBSO-33
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 150 l/min (40 gpm)
  • Flangeable
Manual (1)
PDF Dual counterbalance, vented – VBSO-DE-CCAP-33-FC2 (EN)
