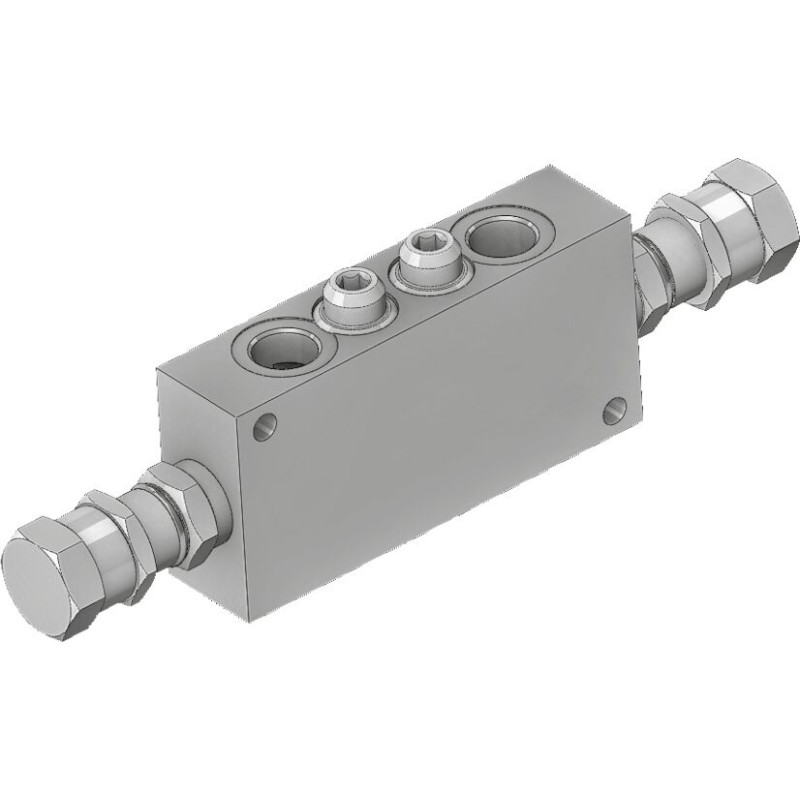

R930001789
054205020420000-VBSO-DE-CC-34-20

R930001789
  • Availability: on request
  • Weight: 2.24 KG
  • Part number: R930001789
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930001789
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2.24 kg
Operating pressure, max. 210 bar
Max. flow 140 l/min
Nominal flow 140 l/min
Adjustable pressure range 60-210
Pressure setting 200 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Dual counterbalance relief compensated
Product family type VBSO
Product family VBSO-DE-CC
Ports number 4
Type of connection Threaded connection
Direct - Pilot External pilot operated
Pilot ratio 8.2:1
Ports G 3/4
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Double effect relief compensated
Product type VBSO
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 140 l/min (37 gpm)
  • Port: G 3/4
Manual (1)
PDF Dual counterbalance, relief compensated – VBSO-DE-CC (G 1/2, G 3/4) (EN)
