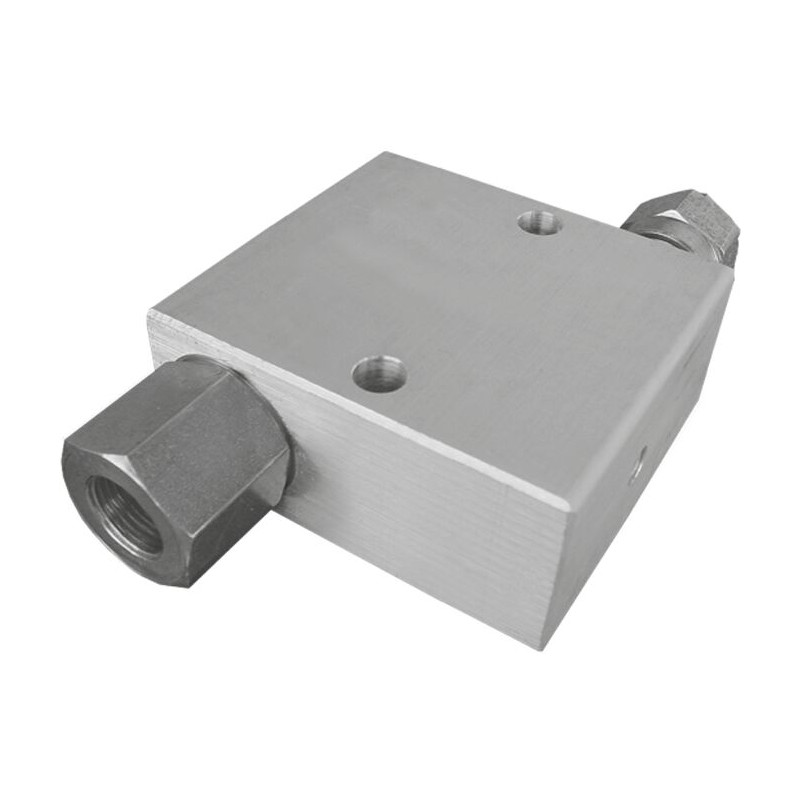

R930001421
052107030235000 VSQ-30-N-38-35

R930001421
  • Availability: on request
  • Weight: 0.78 KG
  • Part number: R930001421
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930001421
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 780 g
Operating pressure, max. 210 bar
Max. flow 30 l/min
Nominal flow 30 l/min
Adjustable pressure range 100-350
Pressure setting 350 bar
Pressure pre-setting With pressure pre-setting
Other properties
Product family classification Sequence, direct acting poppet type
Product family type VSQ
Product family VSQ-30
Ports number 2
Spool Poppet Poppet type
Type of connection Threaded connection
Direct - Pilot Direct acting
Adjustment options Leakproof hexagon socket screw
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Port: G 3/8
Manual (1)
PDF Sequence, direct acting poppet type – VSQ-30 (G 3/8, G 1/2) (EN)
