R930001269
051301030235000 VSC-30-N-38-35

R930001269
  • Availability: On request
  • Weight: 0.42 KG
  • Part number: R930001269
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930001269
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 100-350
Max. flow 30 l/min
Net weight 420 g
Nominal flow 30 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 350 bar
Other properties
Adjustment options Leakproof hexagon socket screw
Cavity 8
Direct - Pilot Direct acting
Hydraulic fluid HL,HLP
Normal position Normally closed
Ports G 3/8
Ports number 2
Product family VSC-30
Product family (CH) Relief

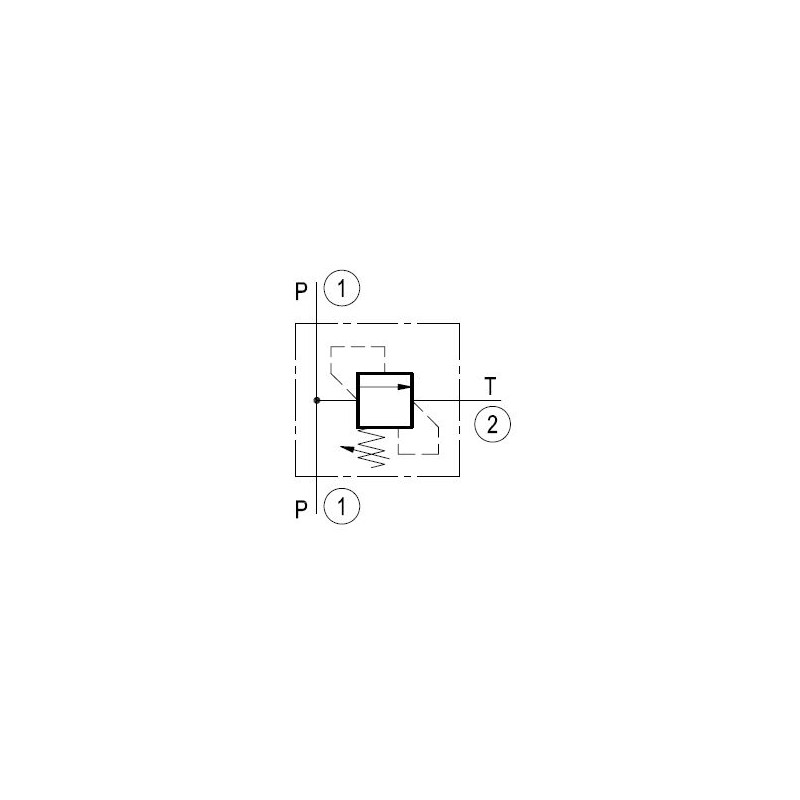

Product family classification Relief, direct acting guided poppet type
Product family type VSC-30
Product type VSC-30
Sealing material NBR
Spool Poppet Poppet type
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 30 l/min (8 gpm)
  • Cavity 008
