R930001259
051204030520000 VSDC-350-100-20

R930001259
  • Availability: on request
  • Weight: 2.72 KG
  • Part number: R930001259
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930001259
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Adjustable pressure range 80-210
Max. flow 350 l/min
Net weight 2.72 kg
Nominal flow 350 l/min
Operating pressure, max. 210 bar
Pressure pre-setting With pressure pre-setting
Pressure setting 200 bar
Other properties
Adjustment options Leakproof hexagon socket screw
Cavity 4
Direct - Pilot Direct acting
Hydraulic fluid HL,HLP
Normal position Normally closed
Ports G 1
Ports number 3
Product family VSDC-350
Product family Relief

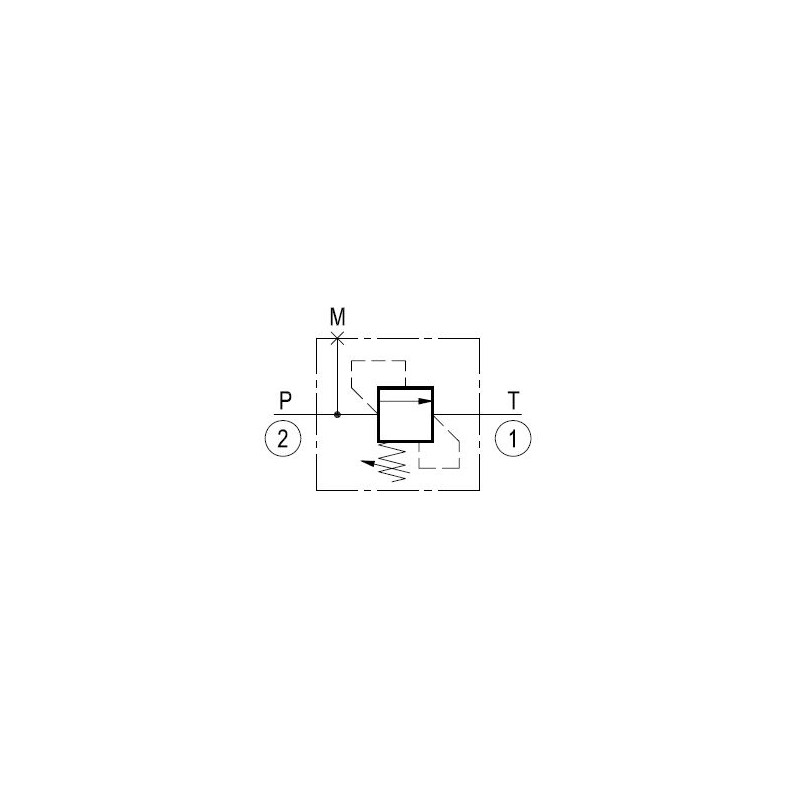

Product family classification Relief, direct acting poppet type, differential area
Product family type VSDC
Product type VSDC
Sealing material NBR
Spool Poppet Poppet type
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 350 l/min (93 gpm)
  • Cavity 004
