| Bending cycles |
2 million
|
| Bending cycles footnote |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Cable cross-section |
3 x 0.14 mm²
|
| Compatible |
EMC, MKK/MKR-065/080/110, MLR-080/110, FMS, FMB, PSK
|
| Connection type |
0.5 m cable and M8x1 plug, 3-pin with knurled screw connection
|
| Dynamic bending radius |
≥ 10xD
|
| Dynamic bending radius footnote |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Electrical accessories for electromechanical cylinders |

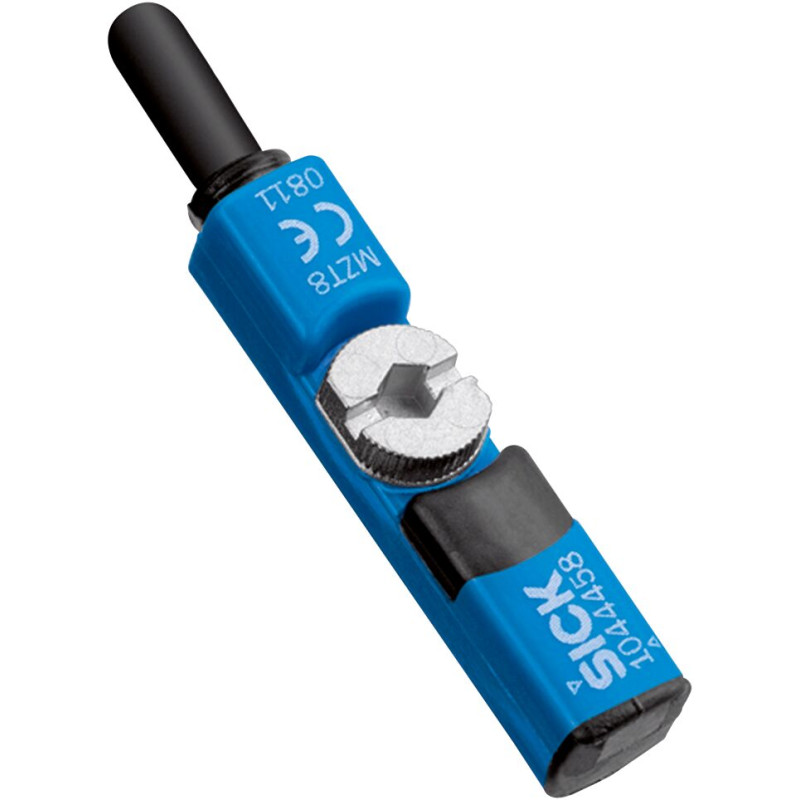

Magnetic sensors
|
| Electrical accessories for linear axes |
Magnetic sensors
|
| Footnote bending radius, static |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote cable cross-section |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Footnote: Max. permissible travel speed |
Technische Daten nur für die angegossene Anschlussleitung (0,5 m) am magnetischen Sensor. Noch mehr Performance, z.B. für den Einsatz in einer Energiekette, bieten die angebotenen Verlängerungsleitungen.
|
| Function indicator |
yes
|
| Functional principle |
magnetic
|
| Load current |
≤ 200
|
| Max. permissible approach speed |
5
m/s |
| Max. permissible travel speed |
5
m/s |
| Maximum acceleration rate amax |
5
m/s² |
| Mean time to dangerous failure (MTTFd) |
2339
|
| Note: Max. acceleration amax |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Operating voltage (min. … max.) |
10 V DC ... 30 V DC
|
| Permissible ambient temperature (min. ... max.) |
-30 °C ... +80 °C
|
| Protection class |
IP 68
|
| Pulse extension (off delay) |
20
ms |
| Reverse polarity protection |
no
|
| Short-circuit protection |
no
|
| Static bending radius |
≥ 5xD
|
| Suitable for drag chains |
Yes
|
| Suitable for drag chains footnote |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Switch-on suppression |
yes
|
| Switching frequency |
3000
Hz |
| Switching function version |
NPN/NC
|
| Torsion-resistant |
no
|
| Torsion-resistant footnote |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
| Use |
Limit switch
|
| Weld spark-resistant |
yes
|
| Weld spark-resistant footnote |
*) Technical data only for the cast-on connection cable (0.5 m) on the magnetic sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.
|
