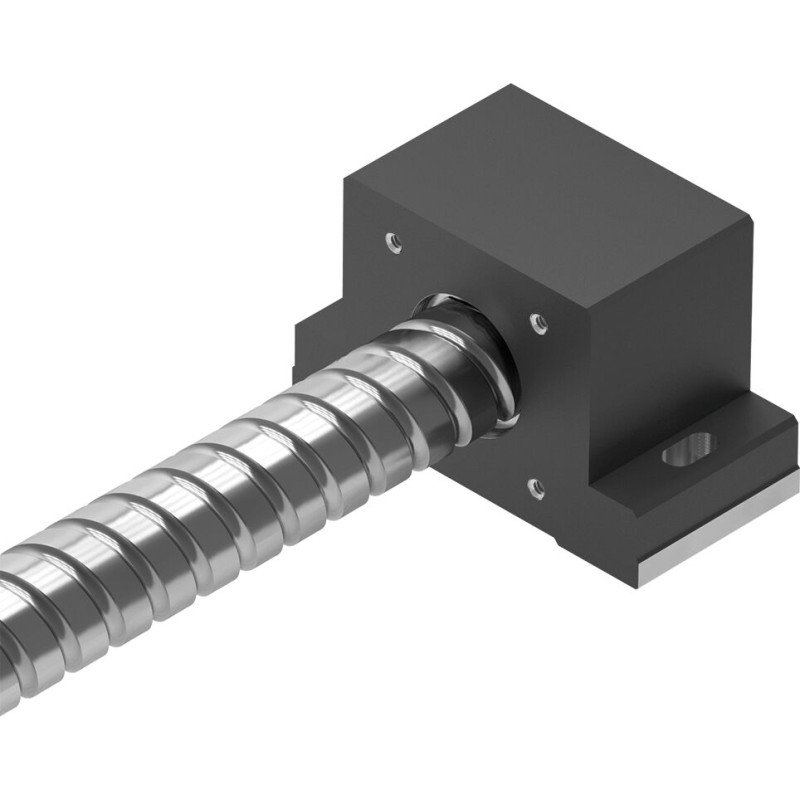

R159561700
SES-L-S 17

R159561700
  • Availability: 2-4 weeks
  • Weight: 3.54 KG
  • Part number: R159561700
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R159561700
Physical size and weight
Net weight 3.544 kg
Other properties
Dimension B (profiled rail systems) 12 mm
Dimension d 17 mm
Dimension D 40 mm
Dynamic load capacity C 9500 N
Nominal size 25x5/10/25
Note: dynamic load capacity C Load capacities (radial)
Note: static load capacity C0 Load capacities (radial)
Static load capacity C0 4150 N
Type Deep-groove ball bearing according to DIN 625
Description

The pillow block unit consists of: Precision pillow block housing made of steel with reference edge on both sides, deep-groove ball bearing DIN 625, retaining ring DIN 471, cover

Features
  • The pillow block unit consists of:
  • Precision pillow block housing made of steel with reference edges on both sides
  • Deep-groove ball bearing DIN 625
  • Retaining ring DIN 471
  • Cover
  • Suitable for screw end form 31
CAD (2)
File r159561700.igs (ALL)
File r159561700.stp (ALL)
Catalog (1)
PDF Screw assemblies (EN)
Manual (2)
PDF Planetary Screw Assemblies (ALL)
PDF Ball Screw Assemblies (ALL)
