R159561500
SES-L-S 15

R159561500
  • Availability: 2-4 weeks
  • Weight: 3.40 KG
  • Part number: R159561500
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R159561500
Physical size and weight
Net weight 3.402 kg
Other properties
Nominal size 20x5/10/20/40
Type Deep-groove ball bearing according to DIN 625
Dynamic load capacity C 7800 N
Note: dynamic load capacity C Load capacities (radial)
Static load capacity C0 3250 N
Note: static load capacity C0 Load capacities (radial)
Dimension B (profiled rail systems) 11 mm
Dimension D 35 mm
Dimension d 15 mm
Description

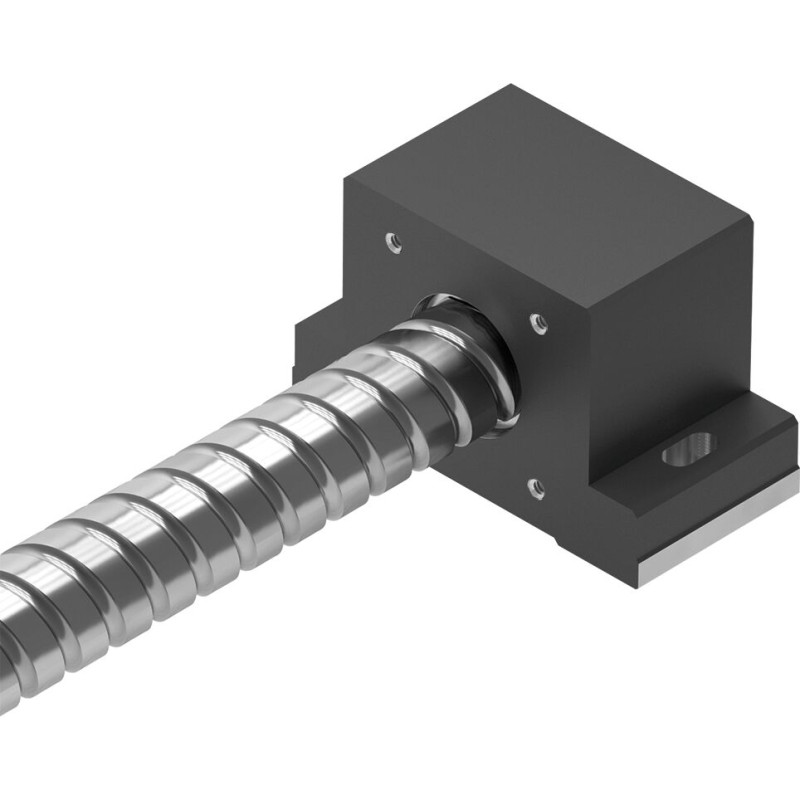

The pillow block unit consists of: Precision pillow block housing made of steel with reference edge on both sides, deep-groove ball bearing DIN 625, retaining ring DIN 471, cover

Features
  • The pillow block unit consists of:
  • Precision pillow block housing made of steel with reference edges on both sides
  • Deep-groove ball bearing DIN 625
  • Retaining ring DIN 471
  • Cover
  • Suitable for screw end form 31
