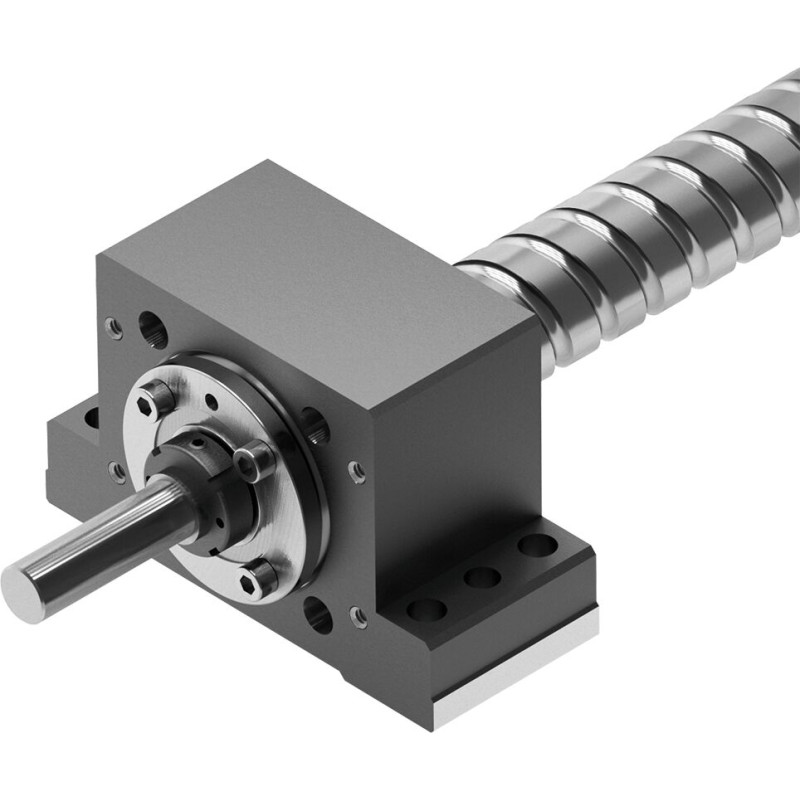

R159503020
SES-F-Z 30

R159503020
  • Availability: 2-4 weeks
  • Weight: 6.40 KG
  • Part number: R159503020
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R159503020
Physical size and weight
Net weight 6.402 kg
Other properties
Nominal size 40x5
Type Angular-contact thrust ball bearing
Tightening torque 32 Nm
Dynamic load capacity C 29000 N
Note: dynamic load capacity C Load capacities (axial)
Limit speed nmin 2200 min⁻¹
Static load capacity C0 64000 N
Note: static load capacity C0 Load capacities (axial)
Rigidity of the bearing (axial) RFB 850 N/μm
Dimension B (profiled rail systems) 28 mm
Dimension B3 40 mm
Dimension D 80 mm
Dimension d 30 mm
Dimension H1 (profiled rail systems) 56
Dimension H3 33 mm
Dimension L1 45 mm
Dimension L2 73 mm
Dimension L3 20 mm
Dimension L4 20 mm
Dimension M1 90 mm
Dimension S2 11.7 mm
Dimension V1 100 mm
Dimension V2 65 mm
Description

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A

Features
  • The pillow block unit consists of:
  • Precision pillow block housing made of steel with reference edges on both sides
  • Angular-contact thrust ball bearing LGF
  • Slotted nut NMZ
  • Suitable for screw end form 81, 81A, 82, 82A
