Other properties
| Dimension B |
28
mm |
| Dimension B3 |
40
mm |
| Dimension D |
68
mm |
| Dimension H1 |
46
|
| Dimension H3 |
28
mm |
| Dimension L1 |
40
mm |
| Dimension L2 |
58
mm |
| Dimension L3 |
18
mm |
| Dimension L4 |
20
mm |
| Dimension M1 |
72.5
mm |
| Dimension S2 |
9.7
mm |
| Dimension V1 |
90
mm |
| Dimension V2 |
46
mm |
| Dynamic load capacity C |
26000
N |
| Limit speed nmin |
3000
min⁻¹ |
| Nominal size |
BASA 32x5/10/20/32/64
|
| Note: Dynamic load capacity C |
Load capacities (axial)
|
| Note: Static load capacity C0 |
Load capacities (axial)
|
| Rigidity of the bearing (axial) RFB |
650
N/μm |
| Static load capacity C0 |
47000
N |
| Tightening torque |
18
Nm |
| Type |
Angular-contact thrust ball bearing
|
Description

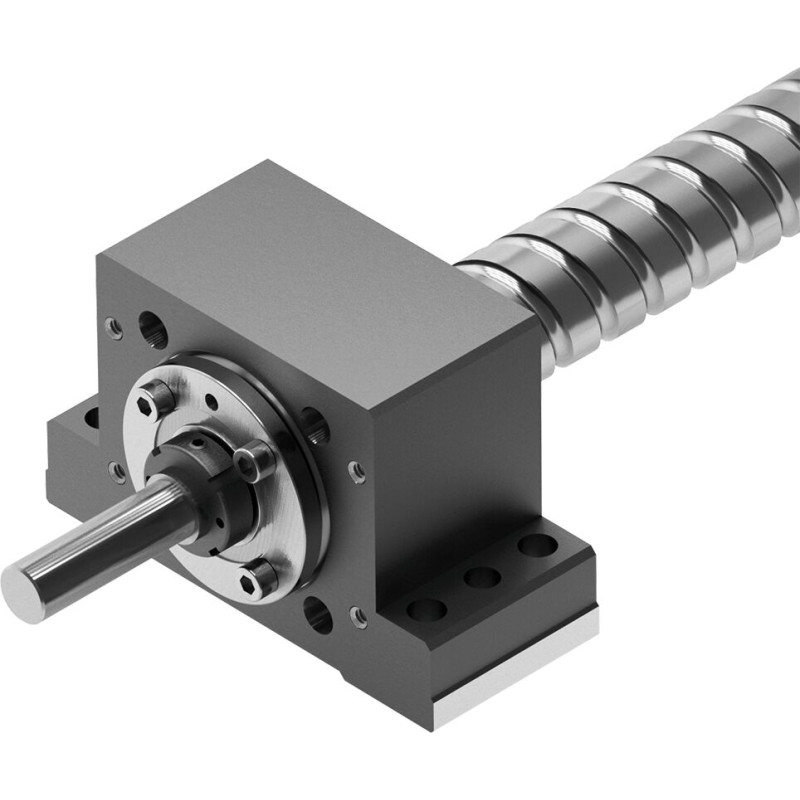

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGF, slotted nut NMZ, suitable for screw ends type 81, 81A, 82, 82A
Features
- The pillow block unit consists of:
- Precision pillow block housing made of steel with reference edges on both sides
- Angular-contact thrust ball bearing LGF
- Slotted nut NMZ
- Suitable for screw end form 81, 81A, 82, 82A
CAD (2)
Catalog (1)
Manual (2)
