R159752500
SEE-F-Z 25

R159752500
  • Availability: 2-5 days
  • Weight: 3.13 KG
  • Part number: R159752500
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R159752500
Physical size and weight
Net weight 3.13 kg
Other properties
Nominal size 40
Type Angular-contact thrust ball bearing
Tightening torque 25 Nm
Dynamic load capacity C 29900 N
Limit speed nmin 4650 min⁻¹
Static load capacity C0 58500 N
Rigidity of the bearing (axial) RFB 981 N/μm
Dimension A (profiled rail systems) 100 mm
Dimension B (profiled rail systems) 30 mm
Dimension D 62 mm
Dimension d 25 mm
Dimension D1 g6 85 mm
Dimension D2 90 mm
Dimension D3 130 mm
Dimension L 66 mm
Dimension L1 33 mm
Dimension L2 18 mm
Dimension L3 12 mm
Dimension L6 4 mm
Dimension V 70 mm
Dimension W 110 mm
Dimension Y 17.5 mm
Description

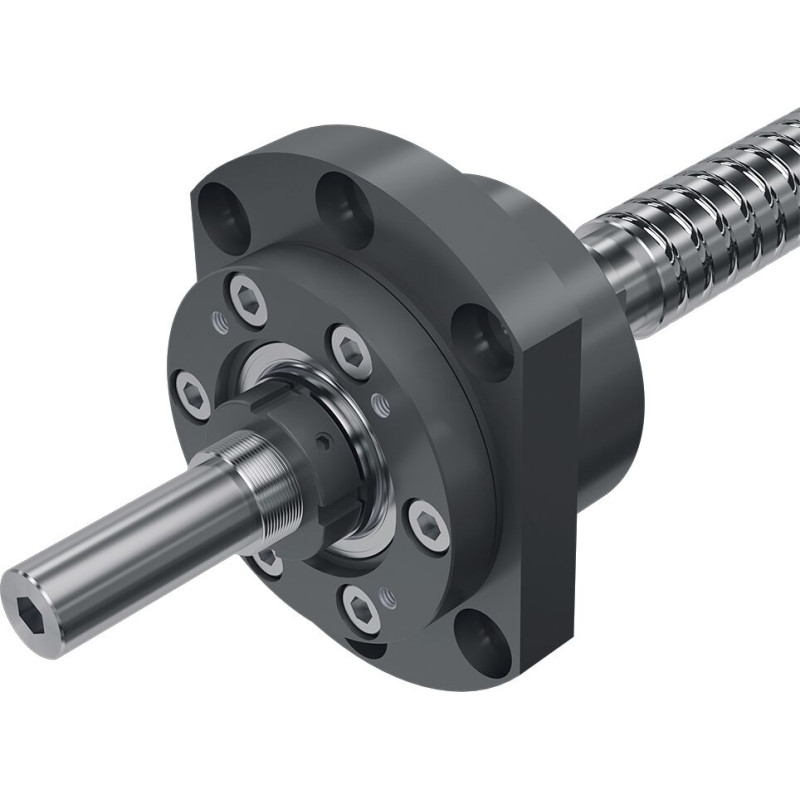

The flange bearing unit consists of: Precision flange bearing housing made of steel with two preloaded angular-contact thrust ball bearings, slotted nut, cover

Features
  • The bearing assembly consists of:
  • precision flanged housing made of steel
  • 2 pre-tensioned angular-contact thrust ball bearings
  • Slotted nut
  • Cover
  • Radial shaft sealing ring
  • Suitable for screw end form 81, 81A
