R159752000
SEE-F-Z 20

R159752000
  • Availability: 2-5 days
  • Weight: 1.86 KG
  • Part number: R159752000
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R159752000
Physical size and weight
Net weight 1.856 kg
Other properties
Nominal size 32
Type Angular-contact thrust ball bearing
Tightening torque 18 Nm
Dynamic load capacity C 25900 N
Limit speed nmin 6300 min⁻¹
Static load capacity C0 40500 N
Rigidity of the bearing (axial) RFB 735 N/μm
Dimension A (profiled rail systems) 80 mm
Dimension B (profiled rail systems) 30 mm
Dimension D 47 mm
Dimension d 20 mm
Dimension D1 g6 70 mm
Dimension D2 72 mm
Dimension D3 106 mm
Dimension L 60 mm
Dimension L1 32 mm
Dimension L2 15 mm
Dimension L3 10 mm
Dimension L6 3 mm
Dimension V 58 mm
Dimension W 88 mm
Dimension Y 14 mm
Description

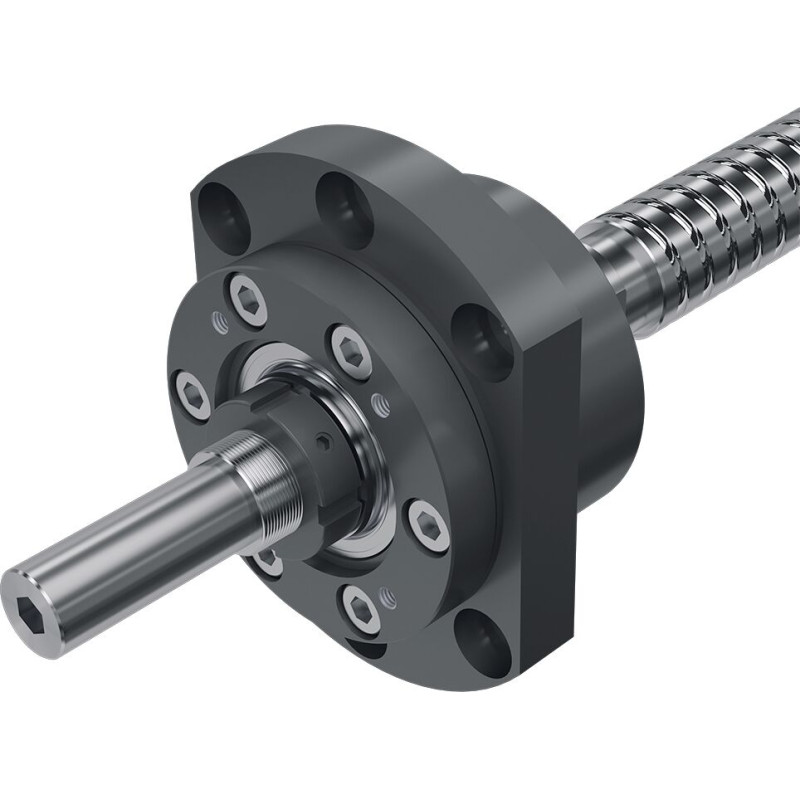

The flange bearing unit consists of: Precision flange bearing housing made of steel with two preloaded angular-contact thrust ball bearings, slotted nut, cover

Features
  • The bearing assembly consists of:
  • precision flanged housing made of steel
  • 2 pre-tensioned angular-contact thrust ball bearings
  • Slotted nut
  • Cover
  • Radial shaft sealing ring
  • Suitable for screw end form 81, 81A
