Other properties
| Nominal size |
80 x 10/20/40
|
| Type |
Angular-contact thrust ball bearing
|
| Tightening torque |
85
Nm |
| Dynamic load capacity C |
113000
N |
| Note: dynamic load capacity C |
Load capacities (axial)
|
| Limit speed nmin |
1200
min⁻¹ |
| Static load capacity C0 |
250000
N |
| Note: static load capacity C0 |
Load capacities (axial)
|
| Rigidity of the bearing (axial) RFB |
1400
N/μm |
| Dimension B (profiled rail systems) |
54
mm |
| Dimension B3 |
25.5
mm |
| Dimension B4 |
20
mm |
| Dimension D |
110
mm |
| Dimension d |
50
mm |
| Dimension D2 |
85
mm |
| Dimension D3 |
90
mm |
| Dimension H1 (profiled rail systems) |
165
|
| Dimension H3 |
50
mm |
| Dimension H4 |
40
mm |
| Dimension H5 |
36
mm |
| Dimension H6 |
98
mm |
| Dimension L3 |
145
mm |
| Dimension L4 |
175
mm |
| Dimension S3 |
11.7
mm |
| Dimension SW |
4
mm |
| Dimension V |
16
mm |
Description

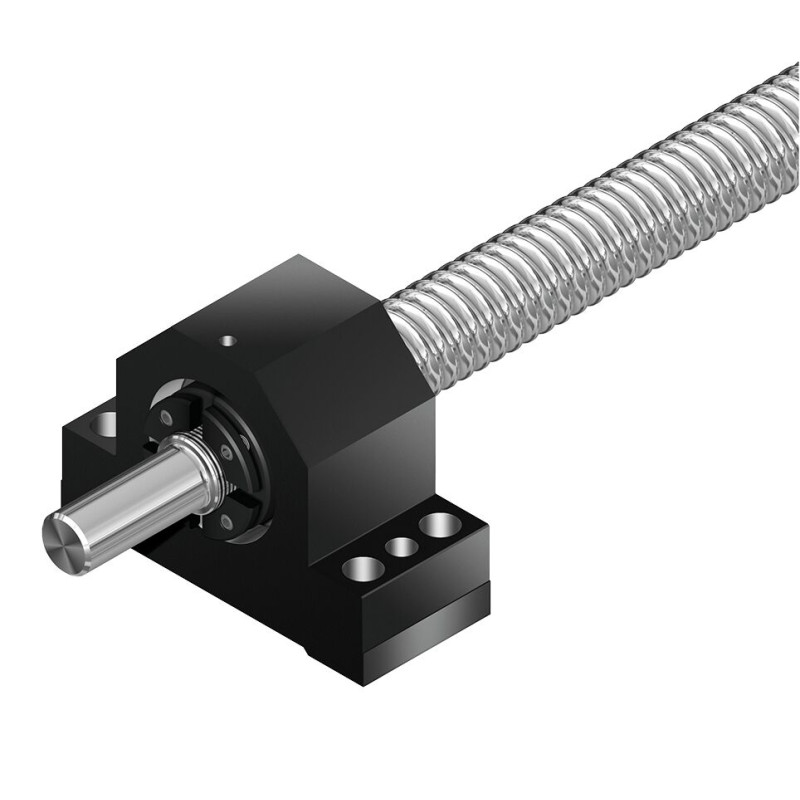

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ, threaded rings GWR
Features
- The pillow block unit consists of:
- Precision pillow block housing made of steel with reference edges on both sides
- Angular-contact thrust ball bearing LGN
- Slotted nut NMA or NMZ
- threaded rings GWR
- Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931
