Other properties
| Nominal size |
40 x 5
|
| Type |
Angular-contact thrust ball bearing
|
| Tightening torque |
32
Nm |
| Dynamic load capacity C |
29000
N |
| Note: dynamic load capacity C |
Load capacities (axial)
|
| Limit speed nmin |
2200
min⁻¹ |
| Static load capacity C0 |
64000
N |
| Note: static load capacity C0 |
Load capacities (axial)
|
| Rigidity of the bearing (axial) RFB |
850
N/μm |
| Dimension B (profiled rail systems) |
28
mm |
| Dimension B3 |
12.5
mm |
| Dimension B4 |
10.5
mm |
| Dimension D |
62
mm |
| Dimension d |
30
mm |
| Dimension D2 |
47
mm |
| Dimension D3 |
53
mm |
| Dimension H1 (profiled rail systems) |
90
|
| Dimension H3 |
32
mm |
| Dimension H4 |
22
mm |
| Dimension H5 |
21
mm |
| Dimension H6 |
56
mm |
| Dimension L3 |
80
mm |
| Dimension L4 |
105
mm |
| Dimension S3 |
9.7
mm |
| Dimension SW |
4
mm |
| Dimension V |
12
mm |
Description

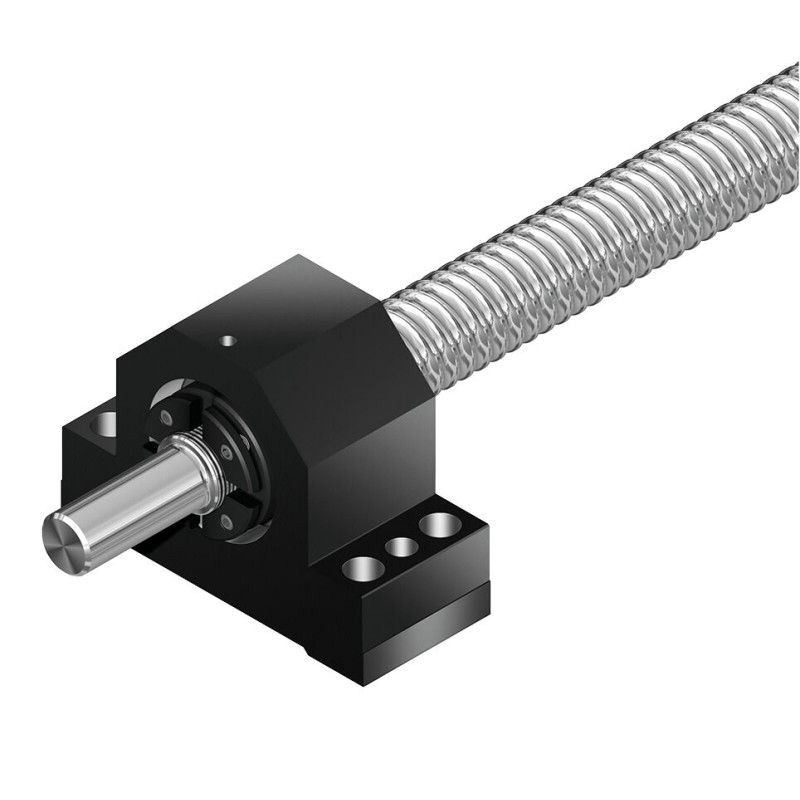

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ, threaded rings GWR
Features
- The pillow block unit consists of:
- Precision pillow block housing made of steel with reference edges on both sides
- Angular-contact thrust ball bearing LGN
- Slotted nut NMA or NMZ
- threaded rings GWR
- Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931
