Other properties
| Nominal size |
40 x 10/12/16/20/25/30/40
|
| Type |
Angular-contact thrust ball bearing
|
| Tightening torque |
25
Nm |
| Dynamic load capacity C |
44500
N |
| Note: dynamic load capacity C |
Load capacities (axial)
|
| Limit speed nmin |
2600
min⁻¹ |
| Static load capacity C0 |
111000
N |
| Note: static load capacity C0 |
Load capacities (axial)
|
| Rigidity of the bearing (axial) RFB |
1300
N/μm |
| Dimension B (profiled rail systems) |
56
mm |
| Dimension B3 |
20.5
mm |
| Dimension B4 |
13.5
mm |
| Dimension D |
57
mm |
| Dimension d |
25
mm |
| Dimension D2 |
43
mm |
| Dimension D3 |
48
mm |
| Dimension H1 (profiled rail systems) |
98
|
| Dimension H3 |
32
mm |
| Dimension H4 |
23
mm |
| Dimension H5 |
21
mm |
| Dimension H6 |
64
mm |
| Dimension L3 |
80
mm |
| Dimension L4 |
105
mm |
| Dimension S3 |
9.7
mm |
| Dimension SW |
4
mm |
| Dimension V |
12
mm |
Description

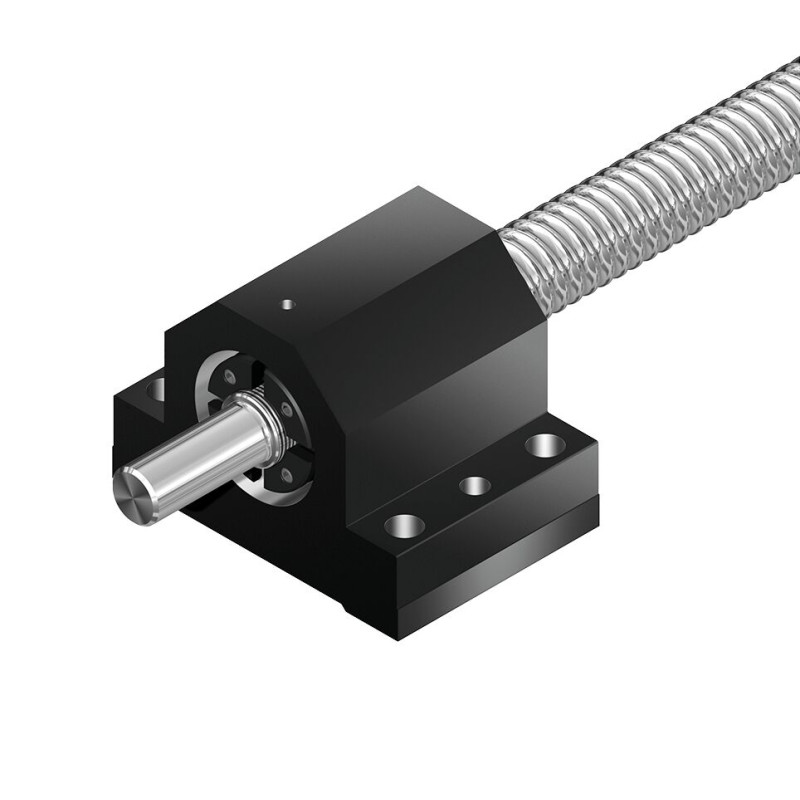

The pillow block unit consists of: Precision pillow block housing made of steel with reference edges on both sides, angular-contact thrust ball bearing LGN, slotted nut NMA or NMZ, threaded rings GWR
Features
- The pillow block unit consists of:
- Precision pillow block housing made of steel with reference edges on both sides
- Angular-contact thrust ball bearing LGN
- Slotted nut NMA or NMZ
- threaded rings GWR
- Suitable for screw end form 51, 51A, 81, 81A, 82, 82A, 91, 91A, 92, 92A, 831, 931
