Physical size and weight
| Dimension diameter S5 (profiled rail systems) |
14
|
| Dimension S9 thread diameter (profiled rail systems) |
M4
|
| Height of runner block |
51
mm |
| Height runner block with guide rail |
60
mm |
| Length of runner block |
179.5
mm |
| Net weight |
3.563
kg |
| Width of runner block |
86
mm |
Other properties
| Accuracy class |
H - Highly accurate
|
| Dimension A (profiled rail systems) |
86
mm |
| Dimension A1 (profiled rail systems) |
43
mm |
| Dimension A2 (profiled rail systems) |
45
mm |
| Dimension A3 (profiled rail systems) |
20.5
mm |
| Dimension B (profiled rail systems) |
179.5
mm |
| Dimension B1 |
134
mm |
| Dimension E1 |
60
mm |
| Dimension E2 (profiled rail systems) |
80
mm |
| Dimension E8 (profiled rail systems) |
62.9
mm |
| Dimension E9 (profiled rail systems) |
16.7
mm |
| Dimension H |
60
mm |
| Dimension H1 (profiled rail systems) |
51
|
| Dimension H2 with cover strip (profiled rail systems) |
39.1
mm |
| Dimension H2 without cover strip (profiled rail systems) |
38.8
mm |
| Dimension K1 (profiled rail systems) |
33.7
mm |
| Dimension K2 (profiled rail systems) |
36.6
mm |
| Dimension N3 (profiled rail systems) |
18
mm |
| Dimension N5 (profiled rail systems) |
8
mm |
| Dimension N6 (profiled rail systems) |
22.4
mm |
| Dimension N6 tolerance (profiled rail systems) |
± 0.5
|
| Dimension S2 (profiled rail systems) |
M10
|
| Dimension S9 |
M4
|
| Dimension T1 min |
18
mm |
| Dimension V1 |
10
mm |
| Dynamic load capacity C100 |
132300
N |
| Dynamic load capacity C50 |
163000
N |
| Dynamic longitudinal moment load capacity ML100 |
2690
Nm |
| Dynamic longitudinal moment load capacity ML50 |
3310
Nm |
| Dynamic torsional moment load capacity Mt100 |
3270
Nm |
| Dynamic torsional moment load capacity Mt50 |
4020
Nm |
| Footnote friction force FR |
Guideline value for frictional drags of the complete, sealed and lubricated roller runner block.
|
| Format |
SLS - slimline, long, standard height
|
| Friction coefficient μ |
0.0004 ... 0.001
|
| Lubrication |
Preserved
|
| Material (profiled rail systems) |
Hard chrome plated
|
| Maximum acceleration rate amax |
150
m/s² |
| Maximum permissible linear speed vmax |
4
m/s |
| Model |
High-precision roller runner block
|
| Nominal size |
45
|
| Note of Dimension T |
Dimension T = Rail separation of the roller guide rail
|
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: friction coefficient μ |
Without friction of seal
|
| Note: Max. acceleration amax |
Requirement: There must be preload, even during operation under load.
|
| Note: permissible ambient temperature (min. ... max.) |
100°C admissible for a short time. For operation at lower minus temperatures, please consult us.
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Pitch T guide rail |
52.5
mm |
| Preload class |
C2 - Medium preload
|
| Seal |
DS - Double-lip seal
|
| Static load capacity C0 |
276400
N |
| Static longitudinal moment load capacity ML0 |
5630
Nm |
| Static torsional moment load capacity Mt0 |
6830
Nm |
| Version |
Roller rail systems
|
Description

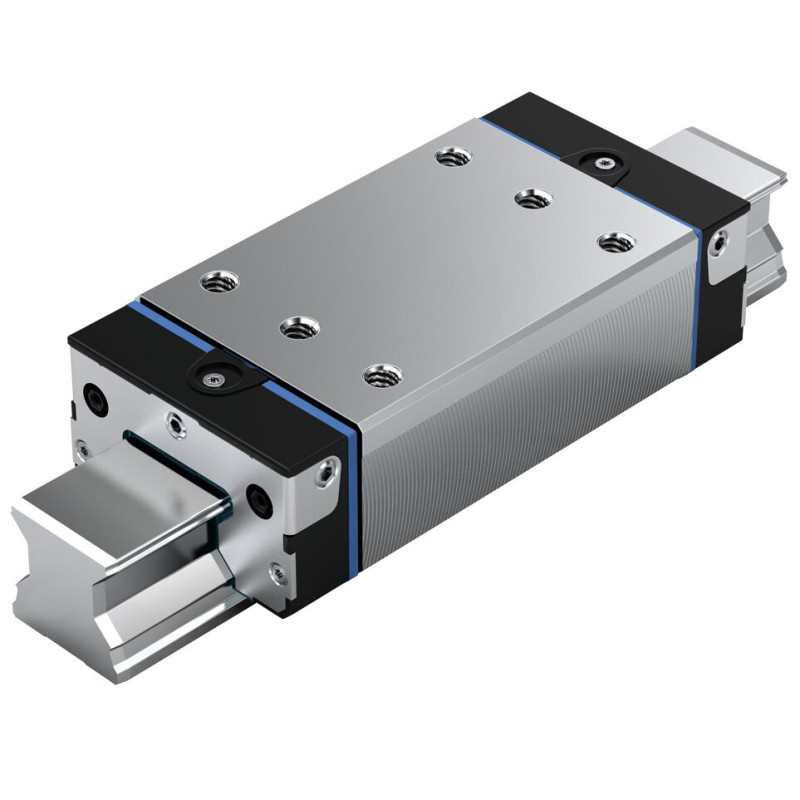

The roller runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:
Size 45
Format SLS: Width = slimline, length = long, height = standard
Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated
Preload class C2: Medium preload
Accuracy class H: High
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 180.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Features
- High torque load capacity
- The same high load ratings in all four main directions of loading
- Maximum rigidity in all load directions due to additional screw connections on two bore holes in the center of the Roller Runner Block
- Corrosion-resistant Resist CR coating: matte-silver, hard chrome plated
- All guide rail versions can be combined at will with all roller runner block variants
- Accessories can be screwed down to the front of the Roller Runner Block.
- Lube nipples possible on all sides for easy maintenance
- Minimum lubrication quantities thanks to innovative channel design
- Smooth, quiet running thanks to optimally designed return and guideways of the rollers
- Attachments on the Roller Runner Block can be mounted from above and below
- Lowest elastic deflection and greatest precision in the process due to the multi-optimized entry-zone geometry and high number of rollers
- The roller runner block is simply slid onto the rail with the transport lock.
- Integrated all-around sealing as standard
- Unrestricted interchangeability
- Corrosion-resistant Roller Runner Blocks and Roller Guide Rails in Resist CR, hard chrome plated, available in accuracy class H. Accuracy classes P and SP available upon request
- Sizes 25 and 65
- Preload classes C1 to C5
- Version with seals DS, SS or AS
