Physical size and weight
| Net weight |
4.315
kg |
| Outer diameter D |
27
mm |
| Width of runner block |
86
mm |
Other properties
| Accessories for |
Guide rail
|
| Dimension A (profiled rail systems) |
86
mm |
| Dimension B1 |
134
mm |
| Dimension B3 |
183
mm |
| Dimension D |
27
mm |
| Nominal size |
45
|
| Product information |
for preload class C3
|
Description

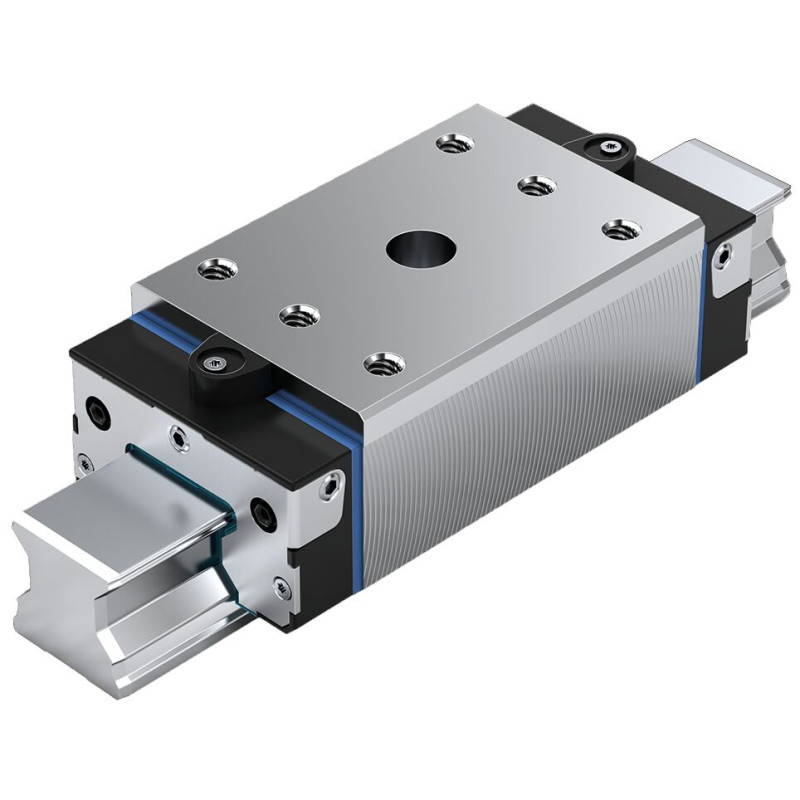

Mounting runner block for roller runner block
Preload class C3
Size 45
Features
- Assembly aid for highly accurate parallel alignment of ball rail systems (types SNS and SNO)
