Physical size and weight
| Net weight |
2.35
kg |
| Width of runner block |
70
mm |
| Length of runner block |
142
mm |
| Height of runner block |
48
mm |
| Height runner block with guide rail |
55
mm |
| Dimension diameter S5 (profiled rail systems) |
9
|
| Dimension S9 thread diameter (profiled rail systems) |
M3
|
Other properties
| Version |
Roller rail systems
|
| Nominal size |
35
|
| Format |
SLH - slimline, long, high
|
| Model |
High-precision roller runner block
|
| Material (profiled rail systems) |
Carbon steel
|
| Preload class |
C3 - High preload
|
| Accuracy class |
UP - Ultra precise
|
| Seal |
DS - Double-lip seal
|
| Lubrication |
Preserved
|
| Maximum acceleration rate amax |
150
m/s² |
| Note: Max. acceleration amax |
Requirement: There must be preload, even during operation under load.
|
| Maximum permissible linear speed vmax |
4
m/s |
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Note: permissible ambient temperature (min. ... max.) |
100°C admissible for a short time. For operation at lower minus temperatures, please consult us.
|
| Friction coefficient μ |
0.0004 ... 0.001
|
| Note: friction coefficient μ |
Without friction of seal
|
| Dynamic load capacity C50 |
92100
N |
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic load capacity C100 |
74900
N |
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static load capacity C0 |
155400
N |
| Dynamic torsional moment load capacity Mt50 |
1830
Nm |
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic torsional moment load capacity Mt100 |
1490
Nm |
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static torsional moment load capacity Mt0 |
3080
Nm |
| Dynamic longitudinal moment load capacity ML50 |
1500
Nm |
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic longitudinal moment load capacity ML100 |
1220
Nm |
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static longitudinal moment load capacity ML0 |
2530
Nm |
| Footnote friction force FR |
Guideline value for frictional drags of the complete, sealed and lubricated roller runner block.
|
| Pitch T guide rail |
40
mm |
| Dimension A (profiled rail systems) |
70
mm |
| Dimension A1 (profiled rail systems) |
35
mm |
| Dimension A2 (profiled rail systems) |
34
mm |
| Dimension A3 (profiled rail systems) |
18
mm |
| Dimension B (profiled rail systems) |
142
mm |
| Dimension B1 |
103.6
mm |
| Dimension E1 |
50
mm |
| Dimension E2 (profiled rail systems) |
72
mm |
| Dimension E8 (profiled rail systems) |
50.3
mm |
| Dimension E9 (profiled rail systems) |
20.1
mm |
| Dimension H |
55
mm |
| Dimension H1 (profiled rail systems) |
48
|
| Dimension H2 with cover strip (profiled rail systems) |
31.1
mm |
| Dimension H2 without cover strip (profiled rail systems) |
30.8
mm |
| Dimension K1 (profiled rail systems) |
22.55
mm |
| Dimension K2 (profiled rail systems) |
24.4
mm |
| Dimension N3 (profiled rail systems) |
13
mm |
| Dimension N5 (profiled rail systems) |
14
mm |
| Dimension N6 (profiled rail systems) |
19.4
mm |
| Dimension N6 tolerance (profiled rail systems) |
± 0.5
|
| Dimension S2 (profiled rail systems) |
M8
|
| Dimension S9 |
M3
|
| Dimension T1 min |
16
mm |
| Dimension V1 |
8
mm |
| Note of Dimension T |
Dimension T = Rail separation of the roller guide rail
|
Description

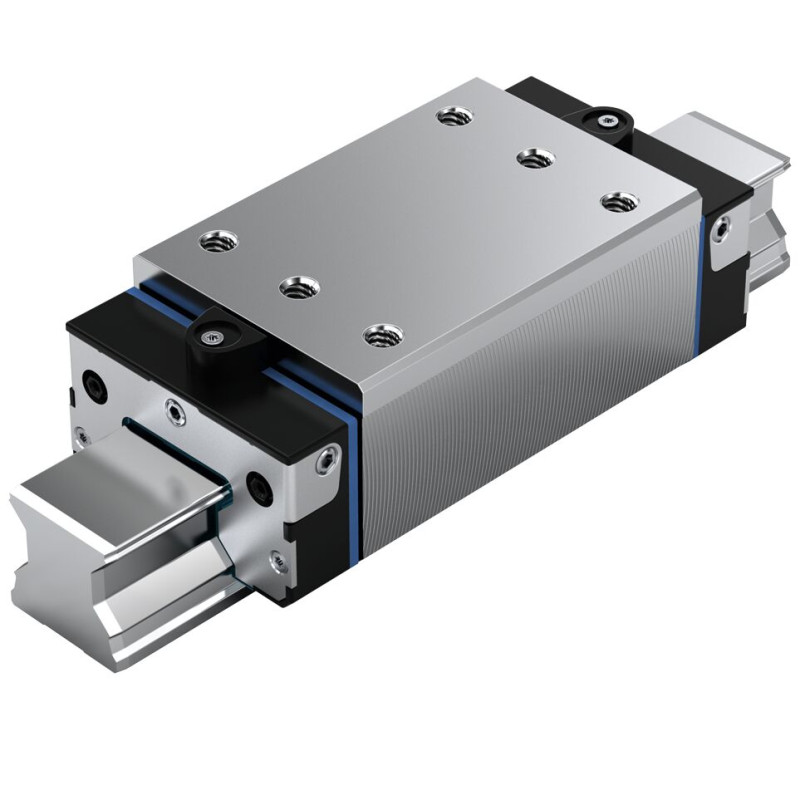

The roller runner block is highly precise and characterized by the following product features:
Size 35
Format SLH: Width = slimline, length = long, height = high
Runner block body made of unalloyed steel CS
Preload class C3: High preload
Accuracy class UP: Ultra precision
Without roller chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 142.5 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Features
- High torque load capacity
- The same high load ratings in all four main directions of loading
- Maximum rigidity in all load directions due to additional screw connections on two bore holes in the center of the Roller Runner Block
- Unrestricted interchangeability
- All guide rail versions can be combined at will with all roller runner block variants
- Accessories can be screwed down to the front of the Roller Runner Block.
- Lube nipples possible on all sides for easy maintenance
- Minimum lubrication quantities thanks to innovative channel design
- Smooth, quiet running thanks to optimally designed return and guideways of the rollers
- Attachments on the Roller Runner Block can be mounted from above and below
- Lowest elastic deflection and greatest precision in the process due to the multi-optimized entry-zone geometry and high number of rollers
- The roller runner block is simply slid onto the rail with the transport lock.
- Integrated all-around sealing as standard
- Preload classes C1 to C5
- Version with seals DS, SS or AS
