Physical size and weight
| Dimension S8 thread diameter (profiled rail systems) |
M6
|
| Height runner block with guide rail |
36
mm |
| Net weight |
38.81
g |
Other properties
| Accessories for |
Runner Block
|
| Dimension A4 (profiled rail system) |
45.4
mm |
| Dimension B3 |
12
mm |
| Dimension H |
36
mm |
| Dimension H3 |
28.9
mm |
| Dimension N8 (profiled rail systems) |
14
mm |
| Dimension N9 (profiled rail systems) |
6
mm |
| Footnote Dimension H |
Dimension with roller runner block flange
|
| Nominal size |
25
|
Description

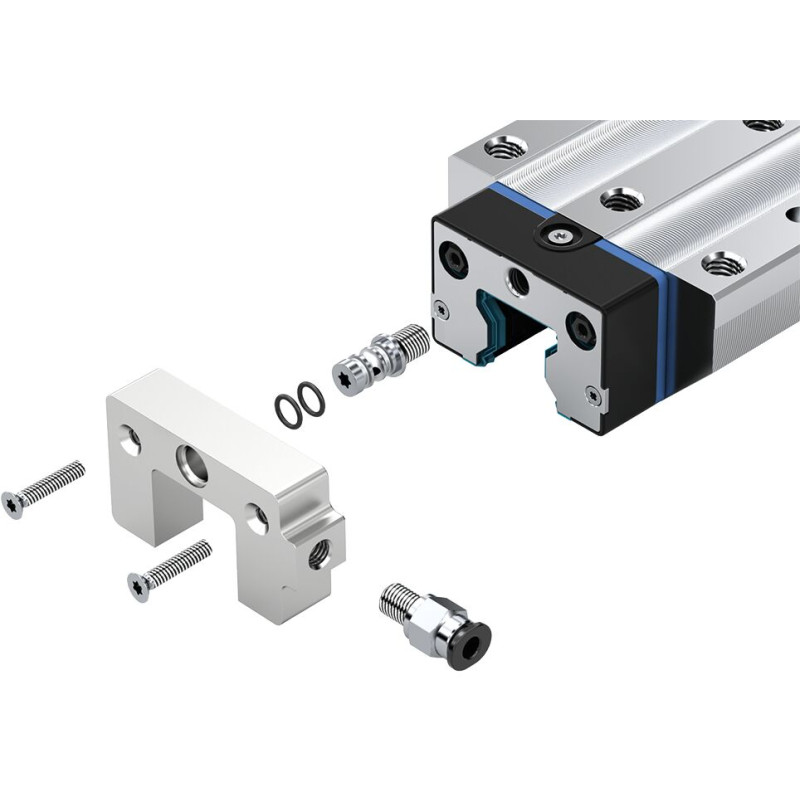

Lubrication plate for standard lube nipples R182024120
Material: Aluminum
Size 25
Features
CAD (1)
Catalog (2)
Roller rail systems High Precision RSHP
(EN)
|
