Physical size and weight
| Net weight |
0.4
kg |
| Dimension diameter S2 (profiled rail systems) |
9
mm |
| Dimension diameter S3 (profiled rail systems) |
6
mm |
Other properties
| Accessories for |
Runner block
|
| Nominal size |
100
|
| Mass m (g) |
300
g |
| Size footnote |
For cover strip 0.3 mm
|
| Dimension A4 (profiled rail system) |
180.5
mm |
| Dimension B1 |
6.5
mm |
| Dimension B2 (profiled rail systems) |
10.2
mm |
| Dimension E8 (profiled rail systems) |
64
mm |
| Dimension E8.1 (profiled rail systems) |
162.6
mm |
| Dimension E9 (profiled rail systems) |
8
mm |
| Dimension E9.1 (profiled rail systems) |
28.4
mm |
| Dimension H3 |
103.5
mm |
Description

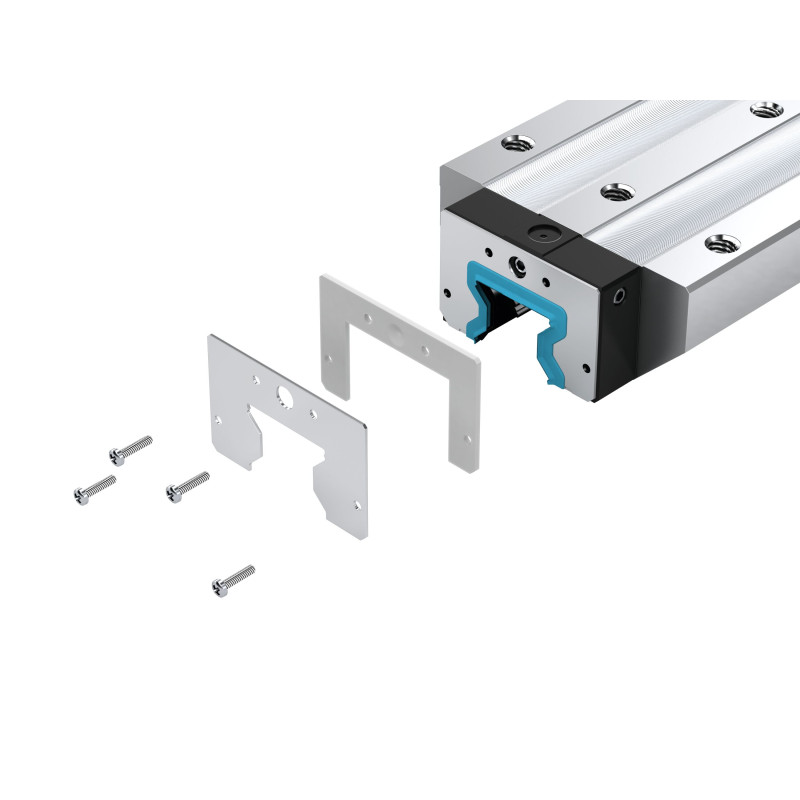

Cover plate wiper for roller rail systems gen.1
Size = 100
Features
- For mounting on roller runner blocks for all roller guide rails
- Cover plate wiper; material: Rust-free spring steel in as per DIN EN 10088; version: blank
- Spacer plate; material: Aluminum
Manual (2)
Roller rail systems High Precision RSHP
(EN)
|
