Other properties
| Accessories for |
Runner Block
|
| Dimension A (profiled rail systems) |
55
mm |
| Dimension B (profiled rail systems) |
39
mm |
| Dimension d |
4.5
mm |
| Dimension D |
4
mm |
| Dimension E1 |
15
mm |
| Dimension E2 (profiled rail systems) |
15
mm |
| Nominal size |
15
|
| Permissible ambient temperature (min. ... max.) |
0 °C ... +70 °C
|
Description

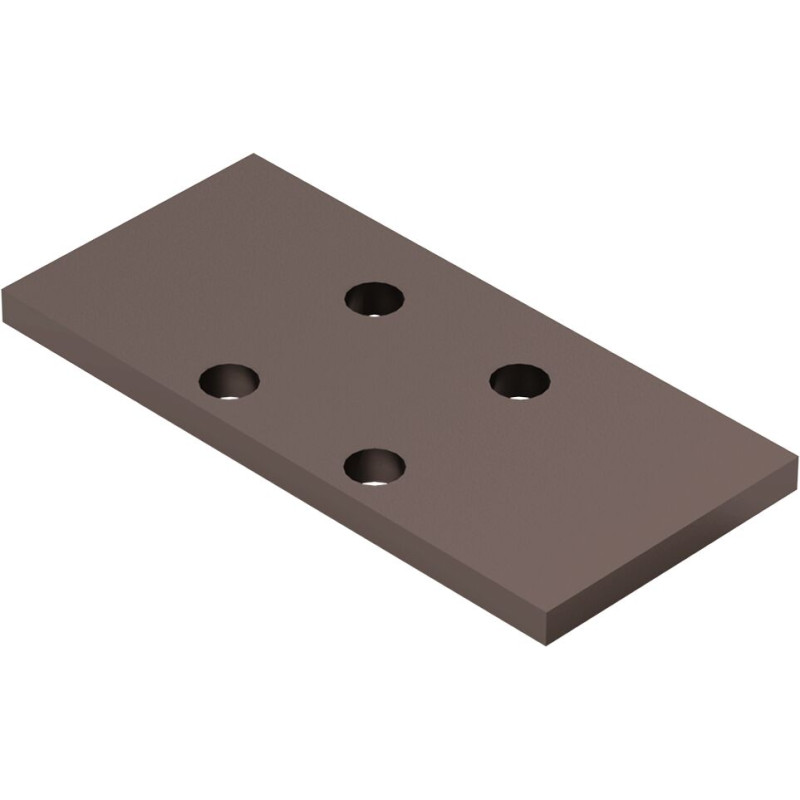

Spacer plate for clamping units MK*)
Size = 15
*)Zimmer GmbH
Features
- Suitable for assembly with high ball runner blocks SNH R1621 and SLH R1624.
- Suitable for assembly with high roller runner blocks SNH R1821 and SLH R1824.
