R161914285
PHK 15-4 &

R161914285
  • Availability: 2-4 weeks
  • Weight: 0.00 KG
  • Part number: R161914285
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R161914285
Physical size and weight
Net weight 0.003 kg
Other properties
Accessories for Runner block
Nominal size 15
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Dimension A (profiled rail systems) 47 mm
Dimension B (profiled rail systems) 25 mm
Dimension D 4 mm
Dimension d 4.5 mm
Dimension E1 17 mm
Dimension E2 (profiled rail systems) 17 mm
Description

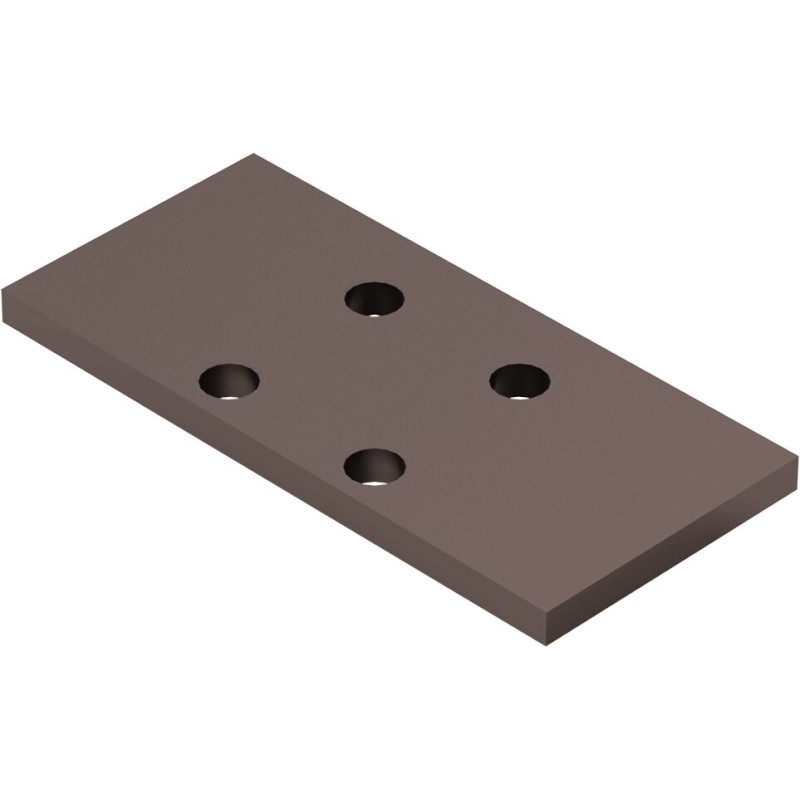

Spacer plate for clamping units HK*) Size = 15 *)Zimmer GmbH

Features
  • Suitable for assembly with high ball runner blocks SNH R1621 and SLH R1624.
  • Suitable for assembly with high roller runner blocks SNH R1821 and SLH R1824.
Catalog (1)
PDF Ball rail systems High Precision BSHP (EN)
CAD (2)
File R161914285.stp (ALL)
File R161914285.igs (ALL)
Manual (2)
PDF R161914285 (EN)
PDF Ball rail systems High Precision BSHP (EN)
