R181024060
MKS 2505 AR &

R181024060
  • Availability: 2-5 days
  • Weight: 0.48 KG
  • Part number: R181024060
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R181024060
Physical size and weight
Net weight 0.484 kg
Dimension S2 thread diameter (profiled rail systems) M6
Height of guide rail H2 20 mm
Other properties
Accessories for Runner block
Nominal size 25
Note: spring energy holding force with standard air port Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Footnote for spring energy holding force with air-plus port Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Air consumption (normal liter) standard air port 0.021 dm³/stroke
Dimension A (profiled rail systems) 75 mm
Dimension A1 (profiled rail systems) 49 mm
Dimension B (profiled rail systems) 35 mm
Dimension B1 57.3 mm
Dimension D 22 mm
Dimension E1 20 mm
Dimension E2 (profiled rail systems) 20 mm
Dimension E3 (profiled rail systems) 5 mm
Dimension F1 6.5 mm
Dimension F2 30 mm
Dimension H 36 mm
Dimension H1 (profiled rail systems) 32.5
Dimension H2 (profiled rail systems) 20 mm
Dimension N3 (profiled rail systems) 8 mm
Dimension X (profiled rail systems) 5.5 mm
Footnote Dimension H1 For roller runner block .H. (...High...) Spacer plate necessary.
Description

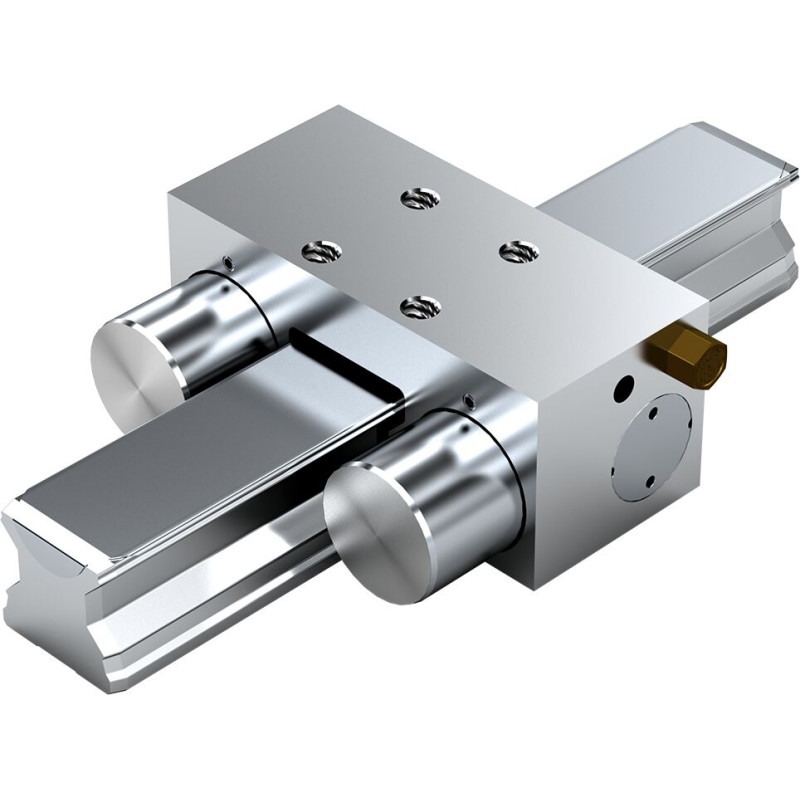

Pneumatic clamping unit MKS*) for roller rail systems Size = 25 Can be used on all SNS roller guide rails *)Zimmer GmbH

Features
  • High axial holding forces with short format
  • Dynamic and static stabilization in the axial direction
  • Easy mounting
  • Clamps without pressurization (spring energy). In the event of a pressure drop, it clamps via the dual-action gate valve gear mechanism with two spring assemblies.
  • Chemically nickel-plated steel housing
  • High axial and horizontal rigidity
  • Precise positioning
  • Higher holding force due to the air-plus port
  • Can be used on all SNS roller guide rails
  • 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
