Physical size and weight
| Dimension S2 thread diameter (profiled rail systems) |
M6
|
| Net weight |
0.43
kg |
Other properties
| Accessories for |
Runner Block
|
| Air consumption (normal liter) standard air port |
0.021
dm³/stroke |
| Dimension A (profiled rail systems) |
75
mm |
| Dimension B (profiled rail systems) |
35
mm |
| Dimension E1 |
20
mm |
| Dimension E2 (profiled rail systems) |
20
mm |
| Dimension E3 (profiled rail systems) |
5
mm |
| Dimension F1 |
6.5
mm |
| Dimension F2 |
17.5
mm |
| Dimension H |
36
mm |
| Dimension H1 (profiled rail systems) |
32.5
|
| Dimension N3 (profiled rail systems) |
8
mm |
| Dimension X (profiled rail systems) |
5.5
mm |
| Footnote Dimension H1 |
For roller runner block .H. (...High...) Spacer plate necessary.
|
| Nominal size |
25
|
| Note: spring energy holding force with standard air port |
Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
|
| Permissible ambient temperature (min. ... max.) |
0 °C ... +70 °C
|
Description

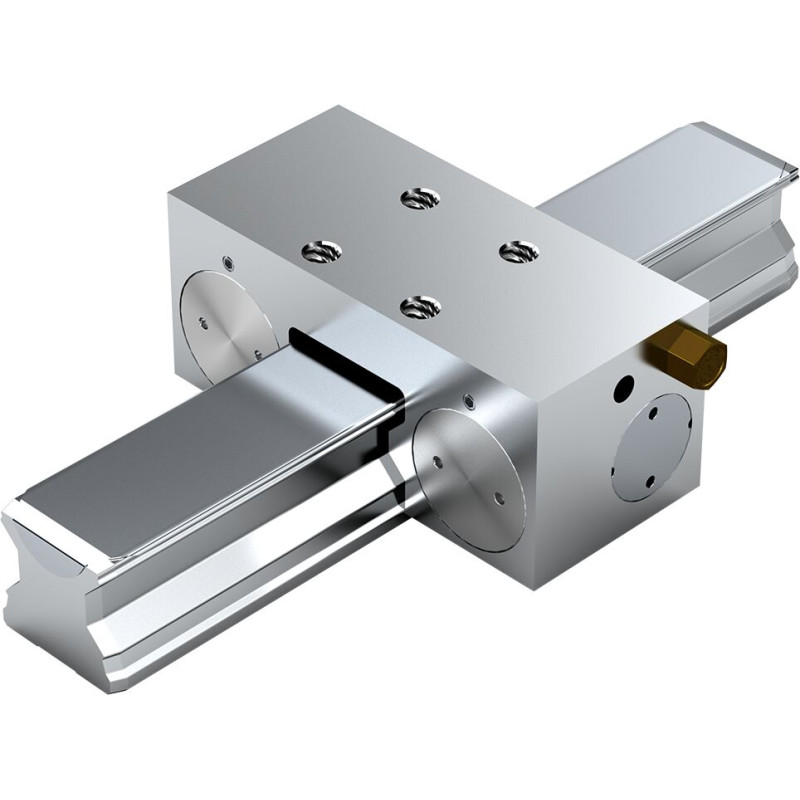

Pneumatic clamping unit MK*) for roller rail systems
Size = 25
Can be used on all SNS roller guide rails
*)Zimmer GmbH
Features
- High axial holding forces with short format
- Dynamic and static stabilization in the axial direction
- Easy mounting
- Clamps with compression (pneumatic) The clamping profiles are pressed by compressed air via a dual acting gate valve gear mechanism.
- Chemically nickel-plated steel housing
- High axial and horizontal rigidity
- Precise positioning
- Continuously adjustable pressure from 4 - 8 bar
- Can be used on all SNS roller guide rails
- 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
- Short decompression cycles
