R181034031
MBPS 3505 BS1A

R181034031
  • Availability: 2-5 days
  • Weight: 1.44 KG
  • Part number: R181034031
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R181034031
Physical size and weight
Net weight 1.443 kg
Dimension S2 thread diameter (profiled rail systems) M8
Height of guide rail H2 26.5 mm
Other properties
Accessories for Runner block
Nominal size 35
Note: spring energy holding force with standard air port Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Air consumption (normal liter) standard air port 0.093 dm³/stroke
Dimension A (profiled rail systems) 100 mm
Dimension A1 (profiled rail systems) 68 mm
Dimension B (profiled rail systems) 46 mm
Dimension B1 27.7 mm
Dimension D1 28 mm
Dimension D2 28 mm
Dimension E1 24 mm
Dimension E3 (profiled rail systems) 24.5 mm
Dimension F1 9 mm
Dimension F2 19 mm
Dimension H 48 mm
Dimension H1 (profiled rail systems) 42
Dimension H2 (profiled rail systems) 26.5 mm
Dimension N3 (profiled rail systems) 10 mm
Footnote Dimension H1 For roller runner block .H. (...High...) Spacer plate necessary.
Description

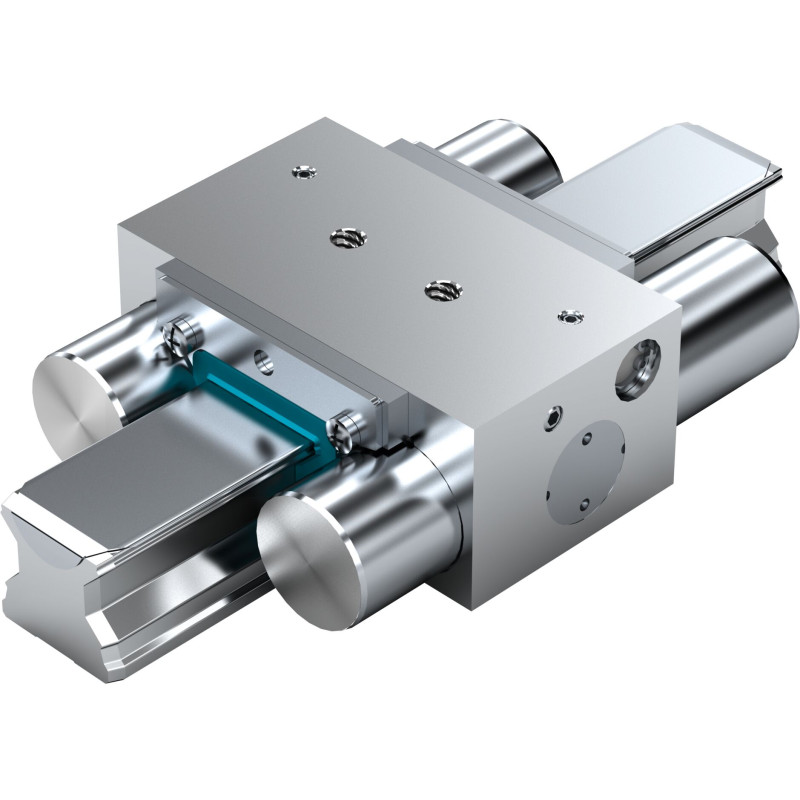

Pneumatic braking unit MBPS*), FLS for roller rail systems Size = 35 Can be used on all SNS roller guide rails *)Zimmer GmbH

Features
  • Clamps and brakes with spring energy accumulator
  • Positive-locking integrated contact profiles ensure maximum axial and horizontal rigidity, and thus an excellent braking effect
  • Dynamic and static stabilization in the axial direction
  • Clamps and brakes without pressurization (spring energy)
  • Clamping and Braking Units in short format
  • Up to 1 million clamping cycles
  • Up to 2,000 emergency braking operations
  • Integrated all-round sealing
  • High continuous output
  • High positioning accuracy
  • Mechanical gate valve gear mechanism
  • Solid, rigid steel housing, chemically nickel-plated
  • Low air consumption
  • Maintenance-free
  • 5 million clamping cycles (B10d value) – the B10d value is not attained with the PLUS connection
  • Can be used on all SNS roller guide rails
  • Add-ons with three pistons connected in series combined with strong springs result in holding forces up to 4,700 N at just 4.5 bar release pressure
