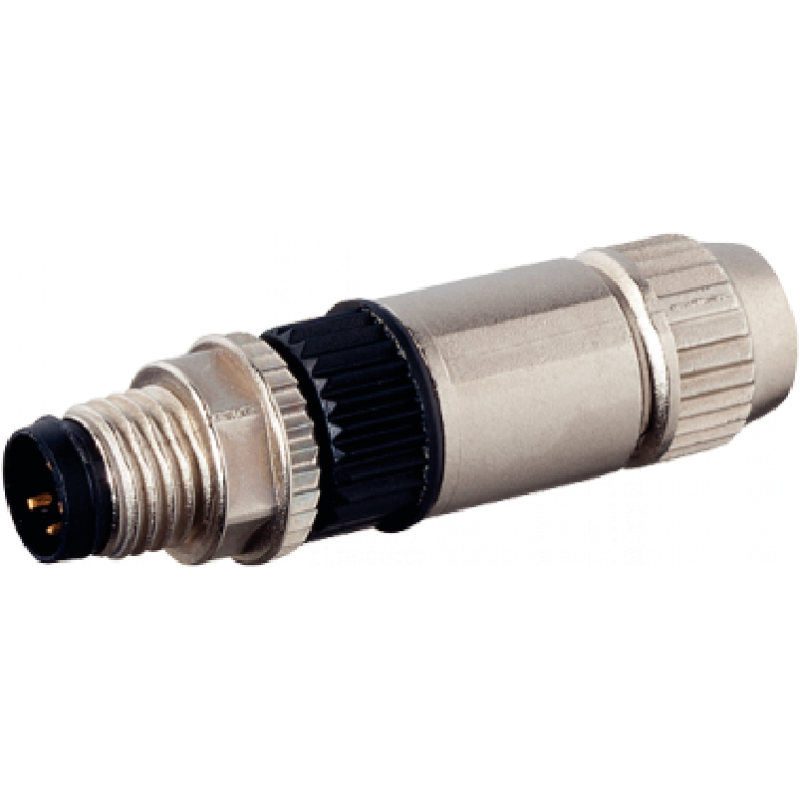

R901388333
M8X1 3POL TOOL-FREE

R901388333
  • Availability: on request
  • Weight: 0.02 KG
  • Part number: R901388333
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901388333
Physical size and weight
Net weight 0.015 kg
Other properties
Electrical accessories for electromechanical cylinders Connector
Electrical accessories for linear axes Connector
Use Connector, single
Version straight
Connection type Connector, straight, M8x1, 3-pin, IDC, self-locking screw
Connection cross-section (min. … max.) 0.14 mm² ... 0.34 mm²
Permissible ambient temperature (min. ... max.) -25 °C ... +85 °C
Operating voltage (min. … max.) 32 V
Operating voltage indicator no
Function indicator no
Note on protection class inserted & screwed down
Maximum operating current per contact 4 A
Protection class IP67
Manual (1)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
