R913031697

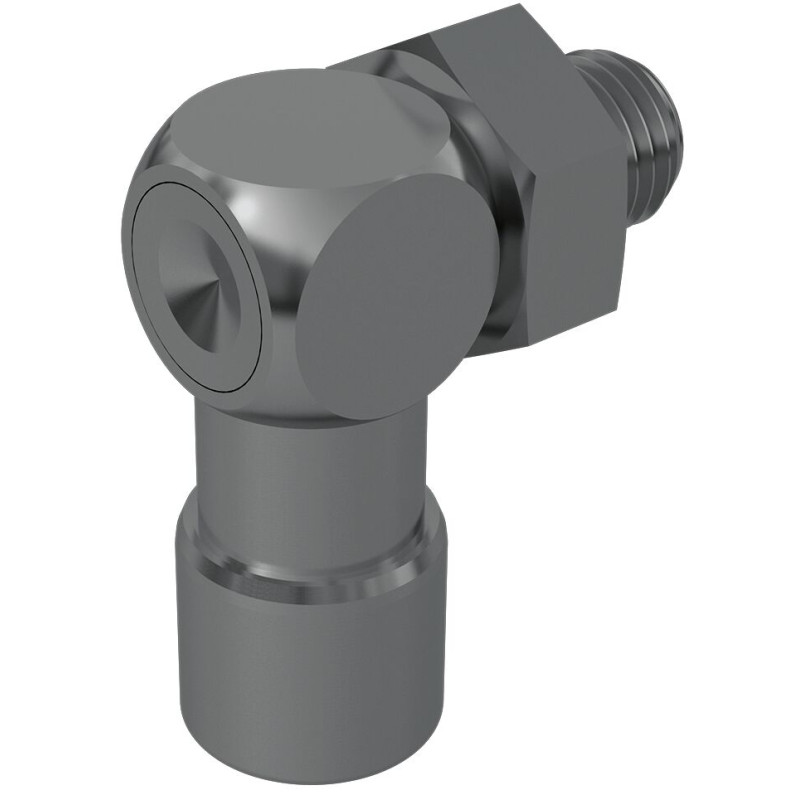

M6 AD4(4/2)-VT1487-4602CNI

R913031697
  • Availability: on request
  • Weight: 0.01 KG
  • Part number: R913031697
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R913031697
Physical size and weight
Net weight 10 g
Working pressure -0.95 bar ... +24 bar
Other properties
Mechanical accessories for electromechanical cylinders Connection for central lubrication system
Mass m (g) 10 g
Permissible ambient temperature (min. ... max.) -20 °C ... +120 °C
Material footnote for housing option standard and IP65
Surface finishing chemically nickel-plated
Material of electromechanical cylinders Brass
Dimension B (profiled rail systems) 8.5 mm
Dimension D1 8.8 mm
Dimension G thread M6
Dimension L1 17.8 mm
Dimension L2 8.5 mm
Dimension L3 5 mm
Dimension L4 17.5 mm
Dimension L5 21.5 mm
Tubing Dimension AD4(4/2)
Dimension SW 10 mm
Features
  • Enclosed O-ring
  • Seals FPM
CAD (2)
File R913031697.igs (ALL)
File R913031697.stp (ALL)
Manual (2)
PDF Electromechanical cylinders EMC (EMC-xxx-NN-2) (EN)
PDF Safety instructions for linear axes and electromechanical cylinders (ALL)
Catalog (2)
PDF Electromechanical cylinders EMC (EN)
PDF Electromechanical cylinders EMC-HP (EN)
