Physical size and weight
| Net weight |
0.664
kg |
| Width of runner block |
57
mm |
| Length of runner block |
123.5
mm |
| Height of runner block |
33.5
mm |
| Height runner block with guide rail |
42
mm |
| Dimension O1 thread diameter |
M12
|
| Dimension O1 thread diameter footnote |
Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
|
Other properties
| Version |
Cam roller guide
|
| Nominal size |
52
|
| Maximum acceleration rate amax |
50
m/s² |
| Maximum permissible linear speed vmax |
10
m/s |
| Note: maximum permissible speed vmax |
For average load.
|
| Maximum permissible dynamic torsional moment about the x-axis Mx max |
2,4 · a
|
| Maximum permissible dynamic torsional moment about the y-axis My max |
2,4 · b
|
| Maximum permissible dynamic torsional moment about the z-axis Mz max |
4 · b
|
| Maximum dynamic load in y-direction Fy max |
8000
N |
| Operating temperature (min. … max.) |
-20 °C ... +80 °C
|
| Maximum static load due to a resulting force in the y-direction F0y max |
8000
N |
| Maximum operating temperature |
+ 80
|
| Maximum dynamic load in z-direction Fz max |
4800
N |
| Minimum operating temperature |
- 20
|
| Dimension A (profiled rail systems) |
57
mm |
| Dimension A1 (profiled rail systems) |
77.5
mm |
| Dimension A2 (profiled rail systems) |
2
mm |
| Dimension B (profiled rail systems) |
123.5
mm |
| Dimension E1 |
81
mm |
| Dimension E2 (profiled rail systems) |
47.5
mm |
| Dimension H |
42
mm |
| Dimension H1 (profiled rail systems) |
33.5
|
| Dimension H2 (profiled rail systems) |
16.9
mm |
| Dimension H3 |
3
mm |
| Dimension S1 (profiled rail systems) |
26
mm |
Description

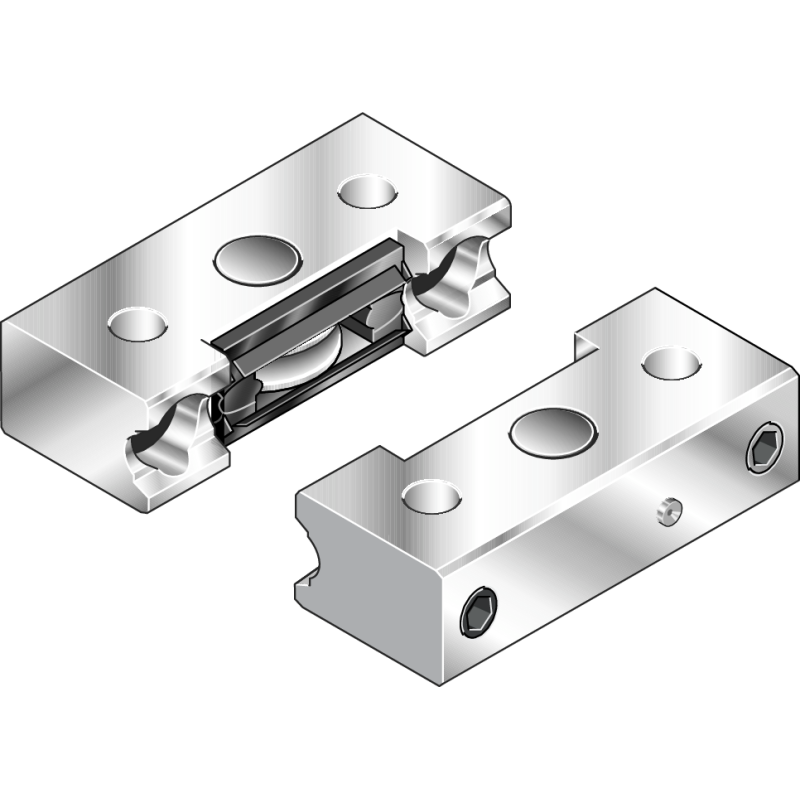

The cam roller single bearing is characterized by the following product features:
Size 52
Format SKS: Width = slimline, length = short, height = standard
Runner block body made of aluminum
Very high load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Lube nipple integrated
Standard version
Overall length of the runner block = 123.5
Interchangeable element
Features
- Distance of the runner blocks on the table construction is freely selectable
- Zero-clearance adjustment using socket hex screws on the rear side of the runner blocks.
- Tough all-round sealing with excellent wiping action. Grease lubrication recommended.
- On two half-rails
