Physical size and weight
| Height of runner block |
18
mm |
| Height runner block with guide rail |
39
mm |
| Length of runner block |
150
mm |
| Net weight |
1.127
kg |
| Width of runner block |
116
mm |
Other properties
| Dimension A (profiled rail systems) |
116
mm |
| Dimension A1 (profiled rail systems) |
98.5
mm |
| Dimension B (profiled rail systems) |
150
mm |
| Dimension E1 |
73
mm |
| Dimension E2 (profiled rail systems) |
15 - 55
|
| Dimension E3 (profiled rail systems) |
85
mm |
| Dimension E4 thread |
M8
|
| Dimension H |
39
mm |
| Dimension H1 (profiled rail systems) |
18
|
| Dimension H2 (profiled rail systems) |
26.4
mm |
| Dimension H3 |
38.1
mm |
| Dimension SW1 |
6
mm |
| Lubrication |
Without lubrication (dry)
|
| Maximum acceleration rate amax |
50
m/s² |
| Maximum dynamic load in y-direction Fy max |
3000
N |
| Maximum dynamic load in z-direction Fz max |
1500
N |
| Maximum operating temperature |
+ 80
|
| Maximum permissible dynamic torsional moment about the x-axis Mx max |
27
Nm |
| Maximum permissible dynamic torsional moment about the y-axis My max |
63
Nm |
| Maximum permissible dynamic torsional moment about the z-axis Mz max |
127
Nm |
| Maximum permissible linear speed vmax |
10
m/s |
| Maximum static load due to a resulting force in the y-direction F0y max |
3000
N |
| Minimum operating temperature |
- 20
|
| Nominal size |
42
|
| Note: Maximum dynamic load in y-direction Fy max |
Observe the permissible lateral force of the guide rail (see instruction for mounting).
|
| Note: maximum permissible speed vmax |
For average load.
|
| Note: maximum static load due to a resulting force in y-direction F0y max |
Observe the permissible lateral force of the guide rail (see notes for mounting).
|
| Operating temperature (min. … max.) |
-20 °C ... +80 °C
|
| Preload class |
C0 - Without preload (clearance)
|
| Version |
Cam roller guide
|

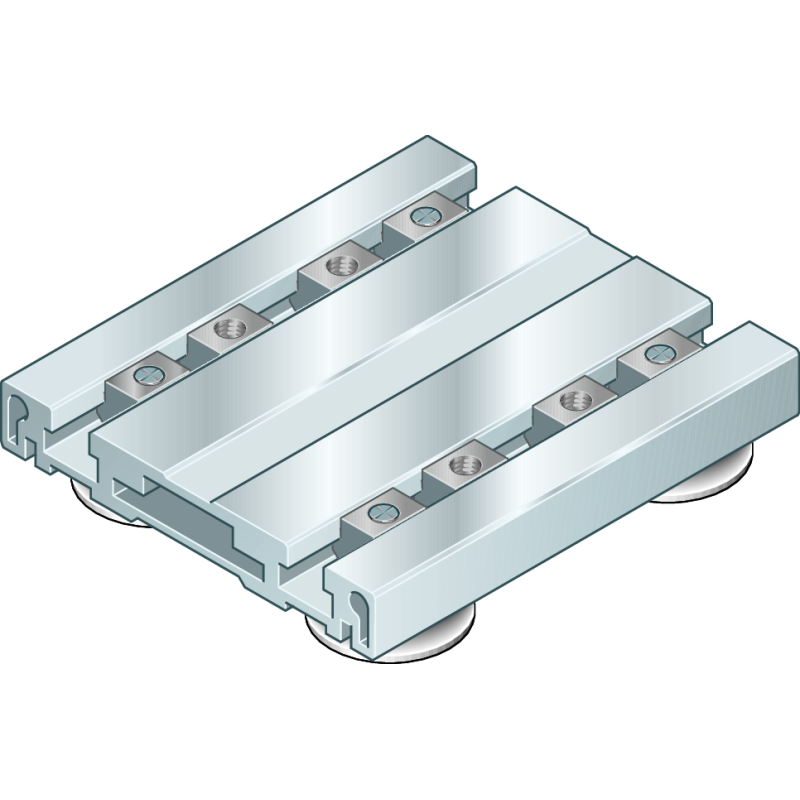

Description
The cam roller runner block (flat profile) is characterized by the following product features:
Size 42
Format SNS: width = slimline, length = standard, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
No lube connection attached
Standard version
Overall length of the runner block = 150
Interchangeable element
Features
- The runner block is set to zero clearance before delivery.
- Wiper and lubrication units are available as accessories
