Physical size and weight
| Dimension O1 thread diameter |
M8
|
| Dimension O1 thread diameter footnote |
Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
|
| Height of runner block |
20.5
mm |
| Height runner block with guide rail |
26
mm |
| Length of runner block |
129
mm |
| Net weight |
0.222
kg |
| Width of runner block |
31
mm |
Other properties
| Dimension A (profiled rail systems) |
31
mm |
| Dimension A1 (profiled rail systems) |
43
mm |
| Dimension A2 (profiled rail systems) |
2
mm |
| Dimension B (profiled rail systems) |
129
mm |
| Dimension E1 |
48
mm |
| Dimension E2 (profiled rail systems) |
27
mm |
| Dimension H |
26
mm |
| Dimension H1 (profiled rail systems) |
20.5
|
| Dimension H2 (profiled rail systems) |
11
mm |
| Dimension H3 |
2.5
mm |
| Dimension S1 (profiled rail systems) |
18
mm |
| Maximum acceleration rate amax |
50
m/s² |
| Maximum dynamic load in y-direction Fy max |
1000
N |
| Maximum dynamic load in z-direction Fz max |
850
N |
| Maximum operating temperature |
+ 80
|
| Maximum permissible dynamic torsional moment about the x-axis Mx max |
0,42 · a
|
| Maximum permissible dynamic torsional moment about the y-axis My max |
21
Nm |
| Maximum permissible dynamic torsional moment about the z-axis Mz max |
25
Nm |
| Maximum permissible linear speed vmax |
10
m/s |
| Maximum static load due to a resulting force in the y-direction F0y max |
1000
N |
| Minimum operating temperature |
- 20
|
| Nominal size |
32
|
| Note: maximum permissible speed vmax |
For average load.
|
| Operating temperature (min. … max.) |
-20 °C ... +80 °C
|
| Version |
Cam roller guide
|
Description

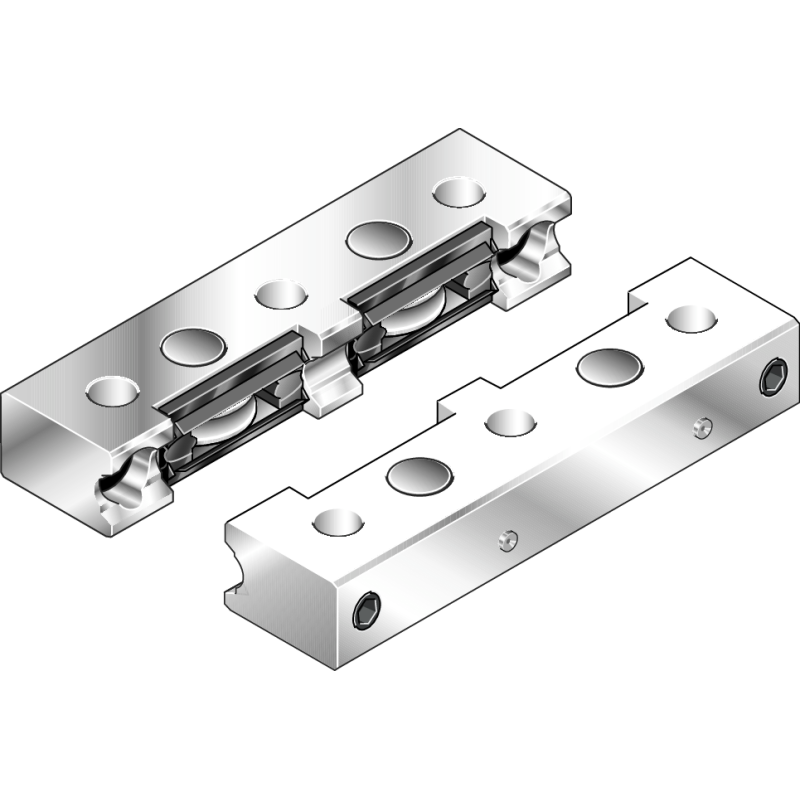

The cam roller double bearing is characterized by the following product features:
Size 32
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Lube nipple integrated
Standard version
Overall length of the runner block = 129
Interchangeable element
Features
- Distance of the runner blocks on the table construction is freely selectable
- Zero-clearance adjustment using socket hex screws on the rear side of the runner blocks.
- Tough all-round sealing with excellent wiping action. Grease lubrication recommended.
- On two half-rails
