Physical size and weight
| Height of runner block |
13
mm |
| Height runner block with guide rail |
35.5
mm |
| Length of runner block |
112
mm |
| Net weight |
0.561
kg |
| Width of runner block |
86
mm |
Other properties
| Dimension A (profiled rail systems) |
86
mm |
| Dimension B (profiled rail systems) |
112
mm |
| Dimension B1 |
92
mm |
| Dimension B2 (profiled rail systems) |
7
mm |
| Dimension E1 |
59
mm |
| Dimension E2 (profiled rail systems) |
70
mm |
| Dimension E3 (profiled rail systems) |
54
mm |
| Dimension E4 |
60
mm |
| Dimension H |
35.5
mm |
| Dimension H1 (profiled rail systems) |
13
|
| Dimension H2 (profiled rail systems) |
20.5
mm |
| Dimension H3 |
29.5
mm |
| Dimension SW1 |
10
mm |
| Dimension SW2 |
3
mm |
| Dimension SW3 |
4
mm |
| Lubrication |
Without lubrication (dry)
|
| Maximum acceleration rate amax |
50
m/s² |
| Maximum dynamic load in y-direction Fy max |
1000
N |
| Maximum dynamic load in z-direction Fz max |
850
N |
| Maximum operating temperature |
+ 80
|
| Maximum permissible dynamic torsional moment about the x-axis Mx max |
11
Nm |
| Maximum permissible dynamic torsional moment about the y-axis My max |
26
Nm |
| Maximum permissible dynamic torsional moment about the z-axis Mz max |
30
Nm |
| Maximum permissible linear speed vmax |
10
m/s |
| Maximum static load due to a resulting force in the y-direction F0y max |
1000
N |
| Minimum operating temperature |
- 20
|
| Nominal size |
32
|
| Note: Maximum dynamic load in y-direction Fy max |
Observe the permissible lateral force of the guide rail (see instruction for mounting).
|
| Note: maximum permissible speed vmax |
For average load.
|
| Note: maximum static load due to a resulting force in y-direction F0y max |
Observe the permissible lateral force of the guide rail (see notes for mounting).
|
| Operating temperature (min. … max.) |
-20 °C ... +80 °C
|
| Preload class |
C0 - Without preload (clearance)
|
| Version |
Cam roller guide
|
Description

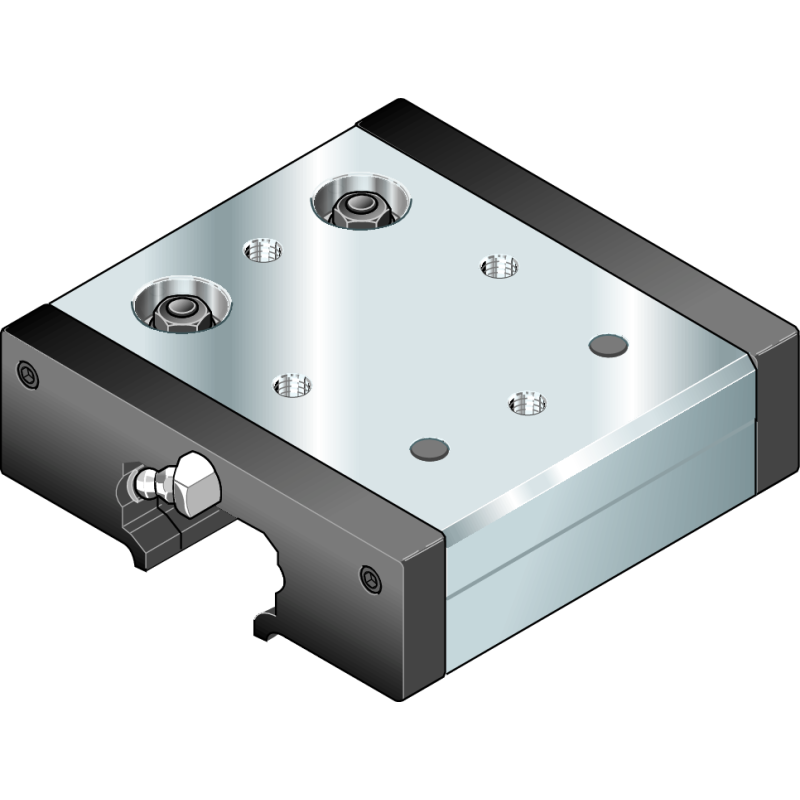

The cam roller runner block is characterized by the following product features:
Size 32
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Attachment element, left (front reference edge): front lube unit with low-friction seal
Attachment element, right (front reference edge): Front lube unit with low-friction seal
Lube nipple included
Standard version
Overall length of the runner block = 119
Interchangeable element
Features
- High load capacity in all four main directions of loading including moments about all axes
- Wiper and lubrication units with large oil reservoir on both sides
- Lube nipples possible on both sides
- The runner block can be simply adjusted to zero clearance by means of eccentric spigots
- Two-row angular-contact ball bearing, sealed and lubricated for life
- Secured guide tracks made of corrosion-resistant precision steel shafts
