Physical size and weight
| Dimension O1 thread diameter |
M8
|
| Height of runner block |
20.5
mm |
| Height runner block with guide rail |
26
mm |
| Length of runner block |
87
mm |
| Net weight |
0.152
kg |
| Note: Dimension O1 thread diameter |
Fastening screws are not included. For screws ISO 4014 8.8, a washer according to ISO 7089 is required.
|
| Width of runner block |
31
mm |
Other properties
| Dimension A |
31
mm |
| Dimension A1 |
43
mm |
| Dimension A2 |
2
mm |
| Dimension B |
87
mm |
| Dimension E1 |
54
mm |
| Dimension E2 |
27
mm |
| Dimension H |
26
mm |
| Dimension H1 |
20.5
|
| Dimension H2 |
11
mm |
| Dimension H3 |
2.5
mm |
| Dimension S1 |
18
mm |
| Maximum acceleration rate amax |
50
m/s² |
| Maximum dynamic load in y-direction Fy max |
1000
N |
| Maximum dynamic load in z-direction Fz max |
850
N |
| Maximum operating temperature |
+ 80
|
| Maximum permissible dynamic torsional moment about the x-axis Mx max |
0,42 · a
|
| Maximum permissible dynamic torsional moment about the y-axis My max |
0,42 · b
|
| Maximum permissible dynamic torsional moment about the z-axis Mz max |
0,5 · b
|
| Maximum permissible linear speed vmax |
10
m/s |
| Maximum static load due to a resulting force in the y-direction F0y max |
1000
N |
| Minimum operating temperature |
- 20
|
| Nominal size |
32
|
| Note: Maximum permissible speed vmax |
For average load.
|
| Operating temperature (min. … max.) |
-20 °C ... +80 °C
|
| Version |
Cam roller guide
|
Description

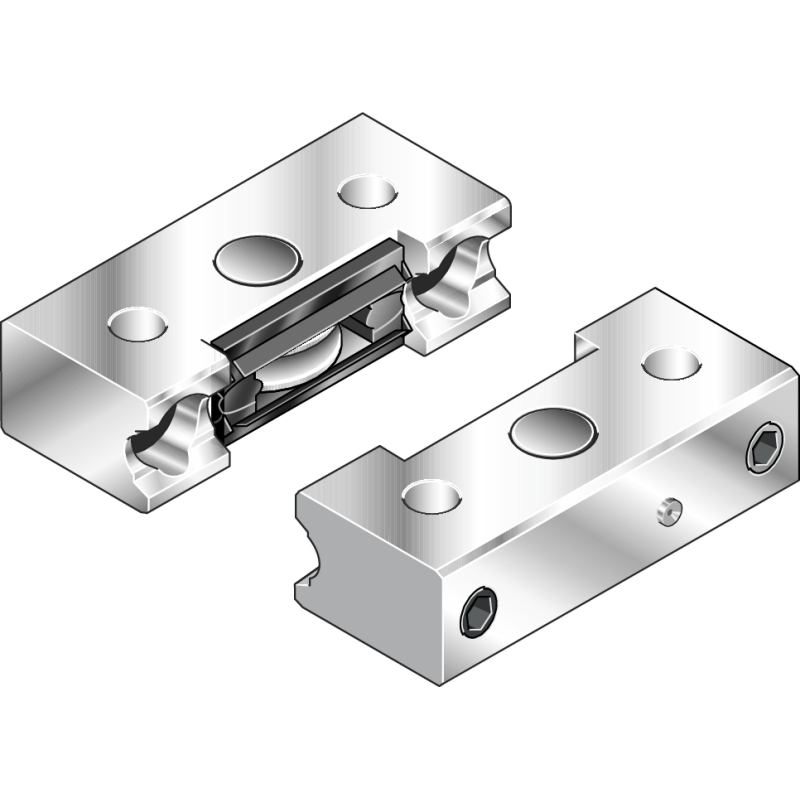

The cam roller single bearing is characterized by the following product features:
Size 32
Format SKS: Width = slimline, length = short, height = standard
Runner block body made of aluminum
Standard load carrying capacity
Accuracy class E: Economic
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Lube nipple integrated
Standard version
Overall length of the runner block = 87
Interchangeable element
Features
- Distance of the runner blocks on the table construction is freely selectable
- Zero-clearance adjustment using socket hex screws on the rear side of the runner blocks.
- Tough all-round sealing with excellent wiping action. Grease lubrication recommended.
- On two half-rails
CAD (3)
Catalog (1)
Manual (1)
