R181064251
KWH 6505 BS2A &

R181064251
  • Availability: 2-4 weeks
  • Weight: 13.19 KG
  • Part number: R181064251
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R181064251
Physical size and weight
Net weight 13.185 kg
Dimension S2 thread diameter (profiled rail systems) M16
Other properties
Accessories for Runner block
Nominal size 65
Holding force 22700 N
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Footnote 1 holding force The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2 150 bar
Displacement footnote Per clamping
Displacement 3.8 cm³
Dimension A (profiled rail systems) 126 mm
Dimension B1 227 mm
Dimension B3 245.1 mm
Dimension E1 76 mm
Dimension E2 (profiled rail systems) 120 mm
Dimension F 20 mm
Dimension H 90 mm
Dimension H1 (profiled rail systems) 76
Dimension N3 (profiled rail systems) 21 mm
Description

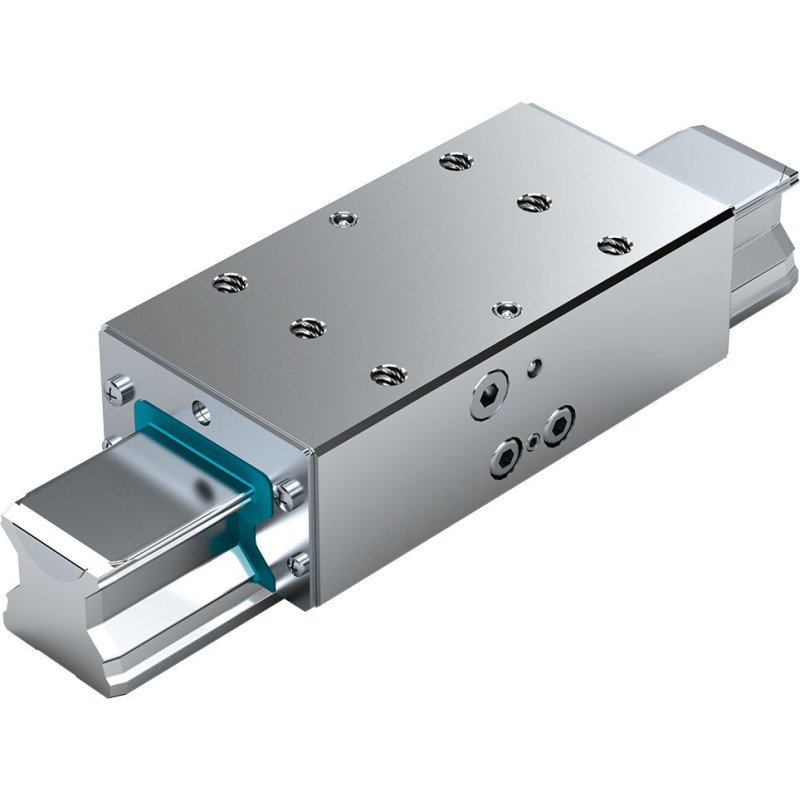

Hydraulic clamping unit KWH*), SLS for roller rail systems Size = 65 Can be used on all SNS roller guide rails *)Zimmer GmbH

Features
  • Very high axial holding forces
  • Dynamic and static stabilization in the axial direction
  • Compact design, compatible with DIN 645
  • Clamps and brakes with pressure
  • Can be used on all SNS roller guide rails
  • Threaded on both sides for the hydraulic connection
  • Solid, rigid steel housing, chemically nickel-plated
  • High positioning accuracy
  • Integrated all-round sealing
  • Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
  • Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
  • 10 million clamping cycles (B10d value)
Catalog (1)
PDF Roller rail systems High Precision RSHP (EN)
CAD (2)
File R181064251.stp (ALL)
File R181064251.igs (ALL)
Manual (2)
PDF Roller rail systems High Precision RSHP (EN)
PDF R181064251 (EN)
