Physical size and weight
| Dimension S2 thread diameter (profiled rail systems) |
M12
|
| Net weight |
7.79
kg |
Other properties
| Accessories for |
Runner Block
|
| Dimension A (profiled rail systems) |
100
mm |
| Dimension B1 |
184
mm |
| Dimension B3 |
204
mm |
| Dimension E1 |
75
mm |
| Dimension E2 (profiled rail systems) |
95
mm |
| Dimension F |
26
mm |
| Dimension H |
80
mm |
| Dimension H1 (profiled rail systems) |
68
|
| Dimension N3 (profiled rail systems) |
19
mm |
| Displacement |
2.4
cm³ |
| Footnote 1 holding force |
The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
|
| Footnote displacement |
Per clamping
|
| Holding force |
13700
N |
| Nominal size |
55
|
| Note: holding force 3 |
At 150 bar
|
| Permissible ambient temperature (min. ... max.) |
0 °C ... +70 °C
|
Description

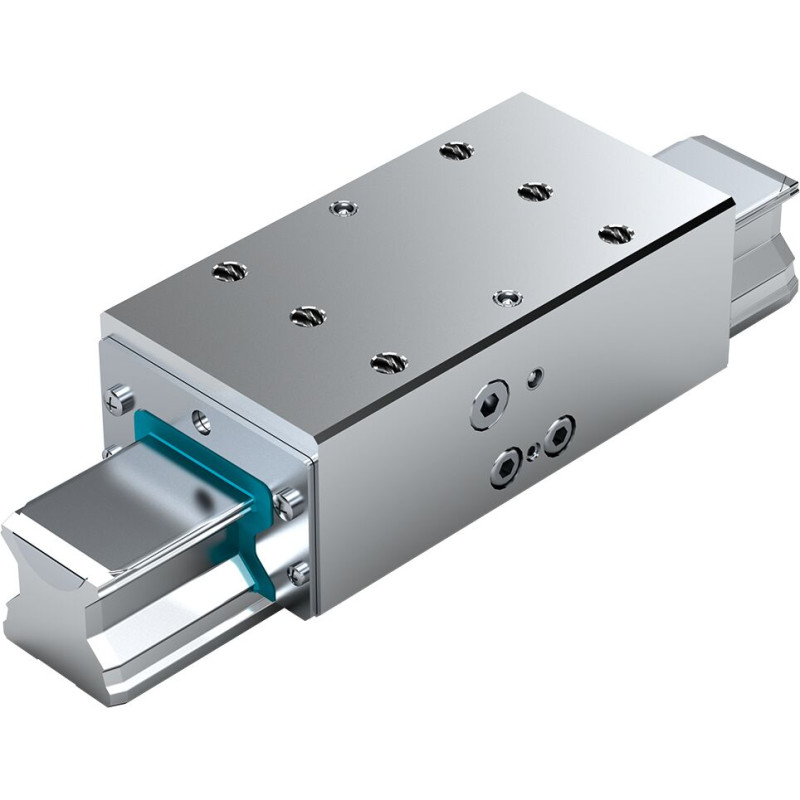

Hydraulic clamping unit KWH*), SLH for roller rail systems
Size = 55
Can be used on all SNS roller guide rails
*)Zimmer GmbH
Features
- Very high axial holding forces
- Dynamic and static stabilization in the axial direction
- Compact design, compatible with DIN 645
- Clamps and brakes with pressure
- Can be used on all SNS roller guide rails
- Threaded on both sides for the hydraulic connection
- Solid, rigid steel housing, chemically nickel-plated
- High positioning accuracy
- Integrated all-round sealing
- Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
- Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
- 10 million clamping cycles (B10d value)
CAD (2)
Catalog (2)
