R181024231
KWH 2505 BS3A &

R181024231
  • Availability: 2-4 weeks
  • Weight: 0.93 KG
  • Part number: R181024231
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R181024231
Physical size and weight
Net weight 0.865 kg
Dimension S2 thread diameter (profiled rail systems) M6
Other properties
Accessories for Runner block
Nominal size 25
Holding force 1600 N
Permissible ambient temperature (min. ... max.) ​0 °C ... +70 °C
Footnote 1 holding force The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see "Technical data and calculations".
Note: holding force 2 100 bar
Footnote displacement Per clamping
Displacement 0.6 cm³
Dimension A (profiled rail systems) 48 mm
Dimension B1 92 mm
Dimension B3 100 mm
Dimension E1 35 mm
Dimension E2 (profiled rail systems) 50 mm
Dimension F 12 mm
Dimension H 40 mm
Dimension H1 (profiled rail systems) 33.5
Dimension N3 (profiled rail systems) 12 mm
Description

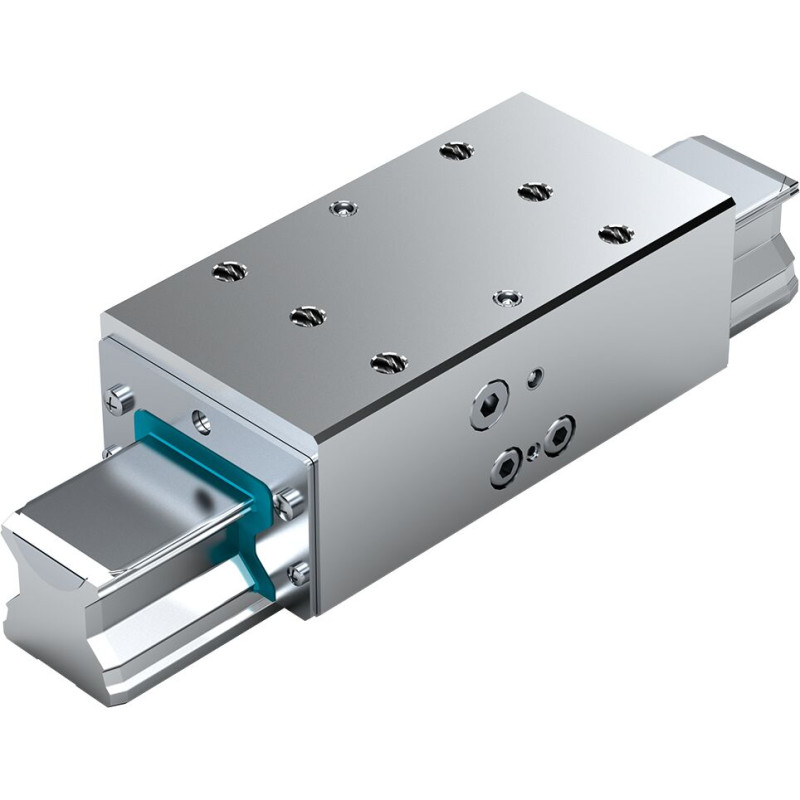

Hydraulic clamping unit KWH*), SLH for roller rail systems Size = 25 Can be used on all SNS roller guide rails *)Zimmer GmbH

Features
  • Very high axial holding forces
  • Dynamic and static stabilization in the axial direction
  • Compact design, compatible with DIN 645
  • Clamps and brakes with pressure
  • Can be used on all SNS roller guide rails
  • Threaded on both sides for the hydraulic connection
  • Solid, rigid steel housing, chemically nickel-plated
  • High positioning accuracy
  • Integrated all-round sealing
  • Special pressure diaphragm technology for maximum functional reliability without pressure losses or leakage
  • Integrated positive-locking, large-surface contact profiles for maximum axial rigidity
  • 10 million clamping cycles (B10d value)
Catalog (1)
PDF Roller rail systems High Precision RSHP (EN)
CAD (2)
File R181024231.igs (ALL)
File R181024231.stp (ALL)
Manual (2)
PDF Roller rail systems High Precision RSHP (EN)
PDF R181024231 (EN)
