Physical size and weight
| Net weight |
3.03
kg |
| Width of runner block |
86
mm |
| Length of runner block |
137.5
mm |
| Height of runner block |
60.3
mm |
| Height runner block with guide rail |
70
mm |
| Dimension S9 thread diameter (profiled rail systems) |
M3
|
| Height of guide rail H2 |
33
mm |
Other properties
| Version |
Ball rail system
|
| Nominal size |
45
|
| Format |
SNH - slimline, normal, high
|
| Model |
Compact Line ball runner block
|
| Preload class |
C0 - Without preload (clearance)
|
| Accuracy class |
N - Normal
|
| Seal |
SS - Standard seal
|
| Ball chain |
Without ball chain (standard)
|
| Lubrication |
Pre-lubricated, preserved
|
| Maximum acceleration rate amax |
500
m/s² |
| Maximum permissible linear speed vmax |
5
m/s |
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Note: permissible ambient temperature (min. ... max.) |
100°C admissible for a short time.
|
| Friction coefficient μ |
0.002 ... 0.003
|
| Note: friction coefficient μ |
Friction coefficient µ without seal friction
|
| Dynamic load capacity C50 |
78100
N |
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic load capacity C100 |
62000
N |
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static load capacity C0 |
83000
N |
| Dynamic torsional moment load capacity Mt50 |
1790
Nm |
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic torsional moment load capacity Mt100 |
1420
Nm |
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static torsional moment load capacity Mt0 |
1930
Nm |
| Dynamic longitudinal moment load capacity ML50 |
1320
Nm |
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
|
| Dynamic longitudinal moment load capacity ML100 |
1050
Nm |
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
|
| Static longitudinal moment load capacity ML0 |
1420
Nm |
| Pitch T guide rail |
105
mm |
| Dimension A (profiled rail systems) |
86
mm |
| Dimension A1 (profiled rail systems) |
43
mm |
| Dimension A2 (profiled rail systems) |
45
mm |
| Dimension A3 (profiled rail systems) |
20.5
mm |
| Dimension B (profiled rail systems) |
137.5
mm |
| Dimension B tolerance (profiled rail systems) |
+ 0.5
|
| Dimension B1 |
97
mm |
| Dimension E1 |
60
mm |
| Dimension E2 |
60
mm |
| Dimension E8 (profiled rail systems) |
61
mm |
| Dimension E9 (profiled rail systems) |
29.5
mm |
| Dimension H |
70
mm |
| Dimension H1 (profiled rail systems) |
60.3
|
| Dimension H2 (profiled rail systems) |
33
mm |
| Dimension K1 (profiled rail systems) |
27.3
mm |
| Dimension K2 (profiled rail systems) |
29.5
mm |
| Dimension K3 (profiled rail systems) |
20.5
mm |
| Dimension K4 (profiled rail systems) |
20.5
mm |
| Dimension N3 (profiled rail systems) |
18
mm |
| Dimension N6 (profiled rail systems) |
17
mm |
| Dimension N6 tolerance (profiled rail systems) |
± 0.5
|
| Dimension S2 (profiled rail systems) |
M10
|
| Dimension S5 (profiled rail system) |
14
mm |
| Dimension S9 |
M3x6.5 mm
|
| Dimension S9 lead |
6.5
mm |
| Dimension T |
105
mm |
| Dimension T1 min |
18
mm |
| Dimension V1 |
10
mm |
Description

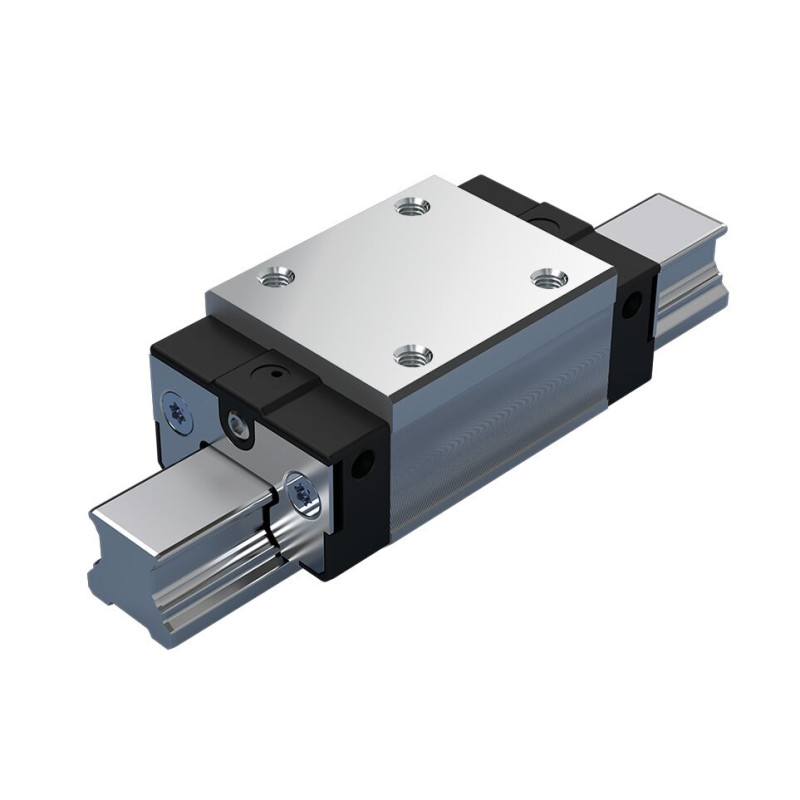

The Compact Line ball runner block is precise and characterized by the following product features:
Size 45
Format SNH - slimline, normal, high
Runner block body made of unalloyed steel CS
Preload class C0: without preload (clearance)
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 137.5 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Features
- Area of application: For restricted space in the transverse direction and high rigidity requirements
- Load capacity: High
- Higher rigidity than SNS
