Physical size and weight
| Dimension S9 thread diameter |
M3
|
| Height of guide rail H2 |
26.5
mm |
| Height of runner block |
47.4
mm |
| Height runner block with guide rail |
55
mm |
| Length of runner block |
139
mm |
| Net weight |
2.11
kg |
| Width of runner block |
70
mm |
Other properties
| Accuracy class |
P - Precise
|
| Ball chain |
Without ball chain (standard)
|
| Dimension A |
70
mm |
| Dimension A1 |
35
mm |
| Dimension A2 |
34
mm |
| Dimension A3 |
18
mm |
| Dimension B |
139
mm |
| Dimension B tolerance |
+ 0.5
|
| Dimension B1 |
105.5
mm |
| Dimension E1 |
50
mm |
| Dimension E2 |
72
mm |
| Dimension E8 |
50
mm |
| Dimension E9 |
22.7
mm |
| Dimension H |
55
mm |
| Dimension H1 |
47.4
|
| Dimension H2 |
26.5
mm |
| Dimension K1 |
23.75
mm |
| Dimension K2 |
25.4
mm |
| Dimension K3 |
14
mm |
| Dimension K4 |
14
mm |
| Dimension N3 |
13
mm |
| Dimension N6 |
15.5
mm |
| Dimension N6 tolerance |
± 0.5
|
| Dimension S2 |
M8
|
| Dimension S5 |
9
mm |
| Dimension S9 |
M3x6.5 mm
|
| Dimension S9 lead |
6.5
mm |
| Dimension T |
80
mm |
| Dimension T1 min |
16
mm |
| Dimension V1 |
8
mm |
| Dynamic load capacity C100 |
55000
N |
| Dynamic load capacity C50 |
69300
N |
| Dynamic longitudinal moment load capacity ML100 |
1030
Nm |
| Dynamic longitudinal moment load capacity ML50 |
1300
Nm |
| Dynamic torsional moment load capacity Mt100 |
1000
Nm |
| Dynamic torsional moment load capacity Mt50 |
1260
Nm |
| Format |
SLH - slimline, long, high
|
| Friction coefficient μ |
0.002 ... 0.003
|
| Lube nipple |
Without lube nipple
|
| Lubrication |
Pre-lubricated, preserved
|
| Maximum acceleration rate amax |
500
m/s² |
| Maximum permissible linear speed vmax |
5
m/s |
| Model |
Compact Line ball runner block
|
| Nominal size |
35
|
| Note: Dynamic longitudinal moment load capacity ML100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic longitudinal moment load capacity ML50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: Dynamic torsional moment load capacity Mt50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Note: Friction coefficient μ |
Friction coefficient µ without seal friction
|
| Note: Max. acceleration amax |
If Fcomb◡ 2.8 • Fpr : amax = 50 m/s2
|
| Note: Permissible ambient temperature (min. ... max.) |
100 °C admissible for a short time.
|
| Note: dynamic load capacity C100 |
Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1.
|
| Note: dynamic load capacity C50 |
Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1.
|
| Permissible ambient temperature (min. ... max.) |
-10 °C ... +80 °C
|
| Pitch T guide rail |
80
mm |
| Preload class |
C2 - Medium preload
|
| Seal |
SS - Standard seal
|
| Static load capacity C0 |
81600
N |
| Static longitudinal moment load capacity ML0 |
1530
Nm |
| Static torsional moment load capacity Mt0 |
1480
Nm |
| Version |
Ball rail system
|
Description

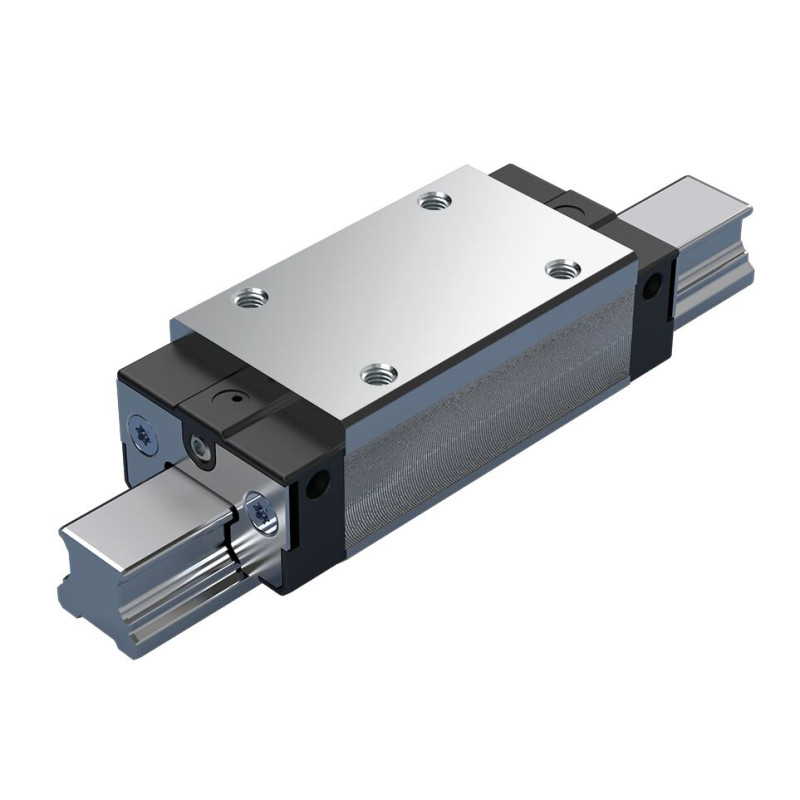

The Compact Line ball runner block is precise and characterized by the following product features:
Size 35
Format SLH - slimline, long, high
Runner block body made of unalloyed steel CS
Preload class C2: Medium preload
Accuracy class P: Precise
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 139 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Without lube nipple
Features
- Area of application: For restricted space in the transverse direction and high rigidity requirements
- Load capacity: Very high
- Higher rigidity than SLS
